Crabtree 6HSR40/30C Loadstar 1 Module 40A C Curve 30mA 10kA 1P+N Type A RCBO
Crabtree 6HSR40/30C Loadstar 40A C Curve 30mA 10kA Type A RCBO

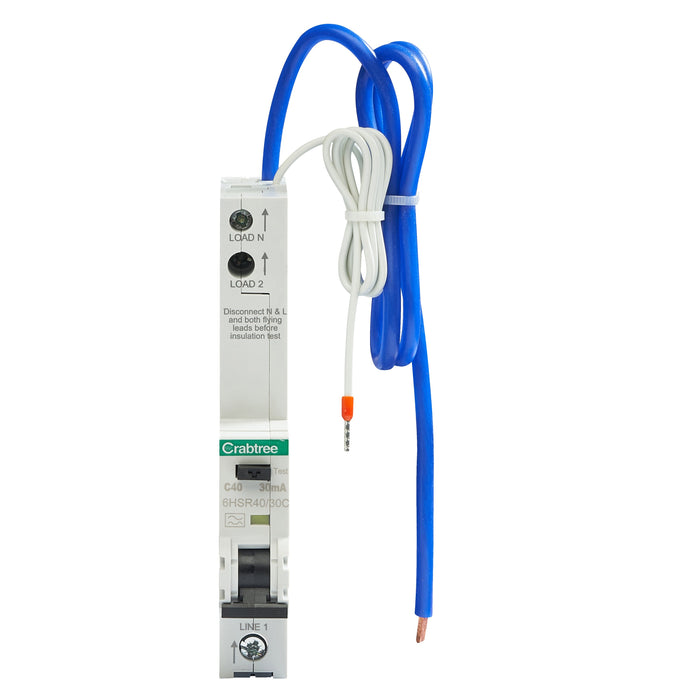

The Crabtree 6HSR40/30C Loadstar RCBO is a compact, single-module circuit protection device that combines MCB and RCD protection in one unit. It provides reliable defence against overloads, short circuits, and earth leakage faults, helping to ensure safe and compliant electrical installations.
Featuring a 40A C curve tripping characteristic and 30mA Type A residual current protection, this RCBO is ideal for circuits with higher inrush currents, such as those supplying motors, control gear, or commercial equipment. A robust 10kA breaking capacity delivers dependable fault protection in both domestic and commercial environments.
Key Features
- 40A C Curve MCB with 30mA Type A RCD protection
- Single-module width RCBO for compact installations
- 10kA short-circuit breaking capacity
- 1P+N configuration with switched neutral
- Uni-directional RCBO design
- Supplied with 600mm neutral and earth tails
- Fully compatible with Crabtree Loadstar distribution boards
Applications
Ideal for higher-load final circuit protection where both earth leakage and overcurrent protection are required, particularly on circuits with increased inrush characteristics compared to B curve devices.
