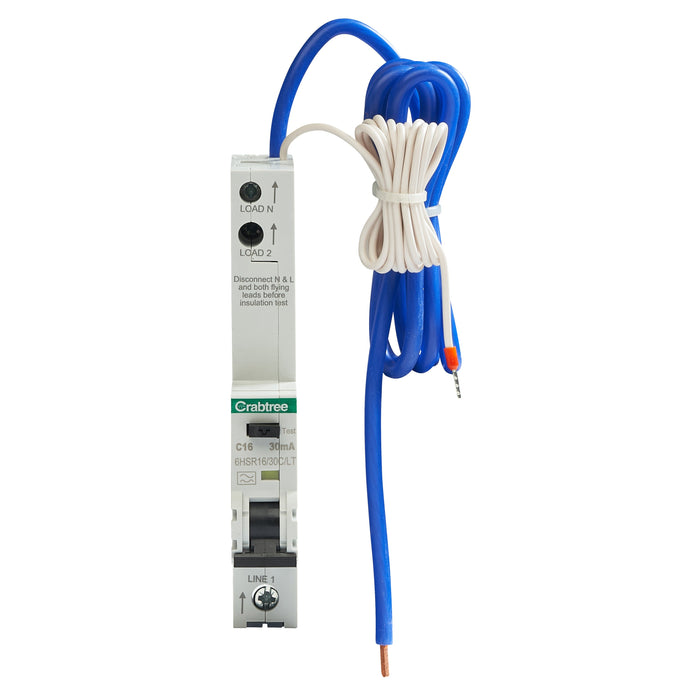

Crabtree 6HSR16/30C/LT Loadstar 1 Module 16A C Curve 30mA 10kA 1P+N Type A RCBO Long Tail
Crabtree 6HSR16/30C/LT Loadstar 16A C Curve 30mA Type A RCBO – Long Tail
The Crabtree 6HSR16/30C/LT Loadstar RCBO is a compact, single-module circuit protection device designed to deliver combined overcurrent and residual current protection with enhanced installation flexibility. This long tail variant is supplied with extended connection leads, making it ideal where additional wiring length is required within the distribution board.
Rated at 16A with a C curve tripping characteristic and 30mA Type A residual current protection, this RCBO is well suited to circuits with moderate inrush currents, such as those supplying motors, control gear, or mixed commercial loads. A robust 10kA breaking capacity ensures dependable fault protection in both domestic and commercial installations.
Key Features
- 16A C Curve MCB with 30mA Type A RCD protection
- Single-module width RCBO for compact installations
- 10kA short-circuit breaking capacity
- 1P+N configuration with switched neutral
- Uni-directional RCBO design
- Supplied with extended 1200mm neutral and earth tails
- Fully compatible with Crabtree Loadstar distribution boards
Applications
Ideal for final circuit protection where additional tail length is required, this RCBO is suitable for socket outlets, lighting circuits, and control applications requiring both earth leakage and overcurrent protection.
