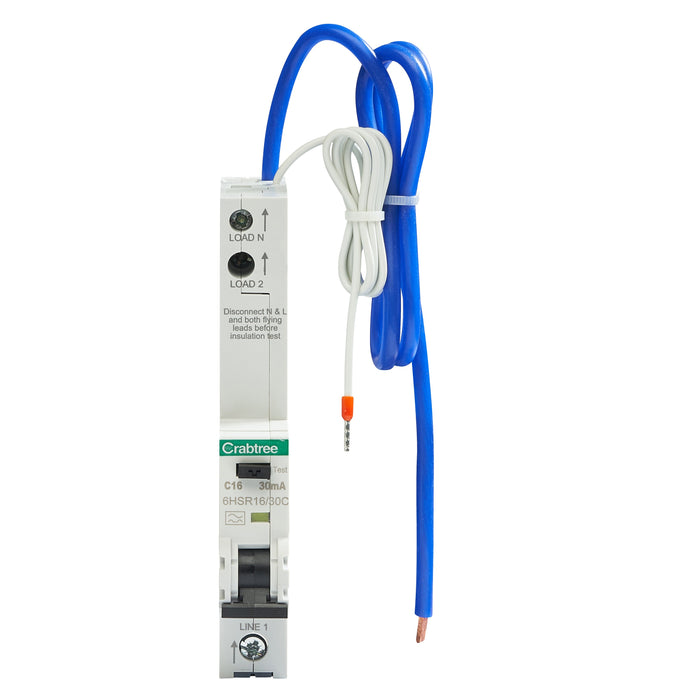

Crabtree 6HSR16/30C Loadstar 1 Module 16A C Curve 30mA 10kA 1P+N Type A RCBO
Crabtree 6HSR16/30C Loadstar 16A C Curve 30mA 10kA Type A RCBO
The Crabtree 6HSR16/30C Loadstar RCBO is a compact, single-module protection device that combines MCB and RCD functionality in one unit. It provides effective protection against overloads, short circuits, and earth leakage faults, helping to ensure safer and more reliable electrical installations.
Featuring a 16A C curve tripping characteristic and 30mA Type A residual current protection, this RCBO is well suited to circuits with moderate inrush currents, such as those supplying motors, transformers, or equipment with higher start-up demands. A 10kA breaking capacity delivers dependable fault protection in domestic and commercial applications.
Key Features
- 16A C Curve MCB with 30mA Type A RCD protection
- Single-module width RCBO for compact installations
- 10kA short-circuit breaking capacity
- 1P+N configuration with switched neutral
- Uni-directional RCBO design
- Supplied with 600mm neutral and earth tails
- Fully compatible with Crabtree Loadstar distribution boards
Applications
Ideal for final circuit protection where both earth leakage and overcurrent protection are required, particularly on circuits with higher inrush characteristics than B curve devices.
