Crabtree 6HSR16/30B Loadstar 1 Module 16A B Curve 30mA 10kA 1P+N Type A RCBO
Crabtree 6HSR16/30B Loadstar 16A B Curve 30mA 10kA Type A RCBO

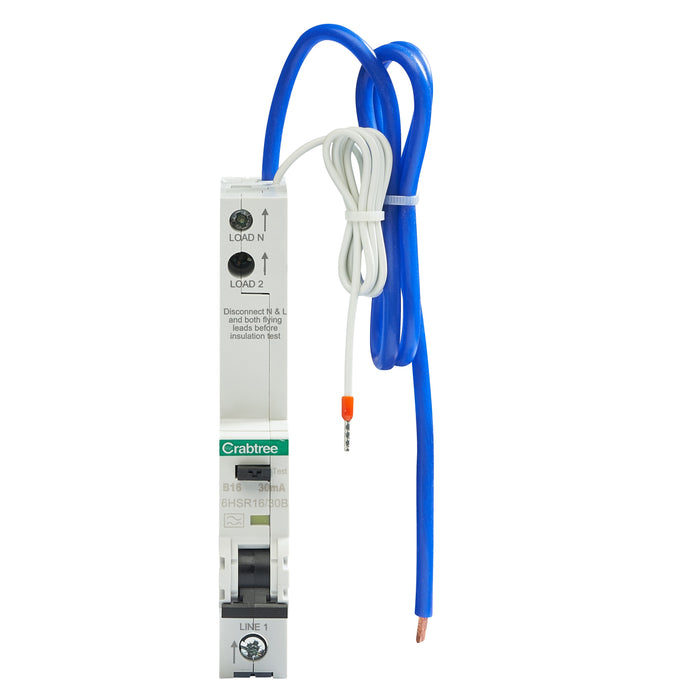

The Crabtree 6HSR16/30B Loadstar RCBO is a compact, single-module protective device designed to provide combined overcurrent and residual current protection for final circuits. By integrating MCB and RCD functionality into one unit, it helps enhance safety and simplify installation.
Rated at 16A with a B curve tripping characteristic and 30mA Type A residual current sensitivity, this RCBO is ideal for general-purpose and lighting circuits where fast disconnection is required. A robust 10kA breaking capacity ensures reliable performance in both domestic and commercial environments.
Key Features
- 16A B Curve MCB combined with 30mA Type A RCD protection
- Single-module width RCBO for space-saving installations
- 10kA short-circuit breaking capacity
- 1P+N configuration with switched neutral
- Uni-directional RCBO design
- Supplied with 600mm neutral and earth tails
- Fully compatible with Crabtree Loadstar distribution boards
Applications
Suitable for residential and commercial installations, this RCBO is ideal for socket-outlet and general final circuits where both earth leakage and overcurrent protection are required.
