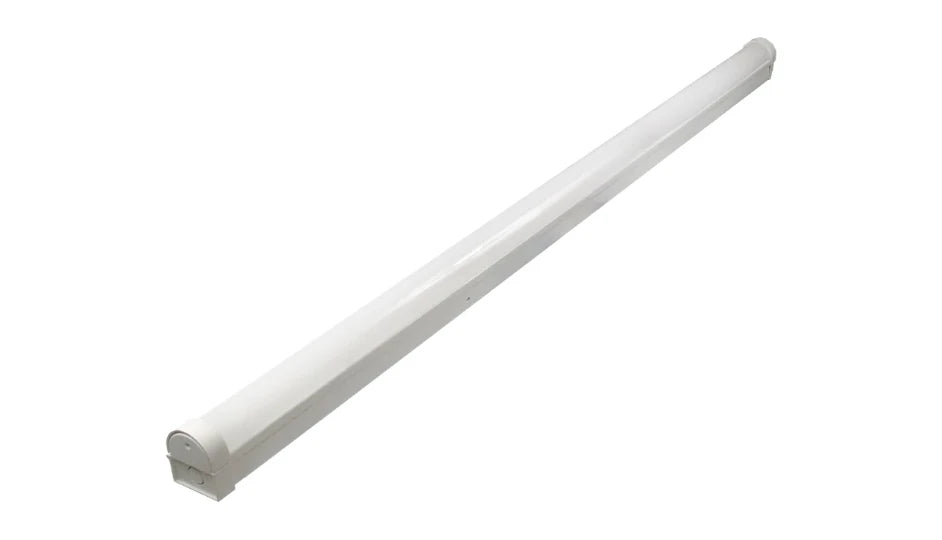

Brackenheath BR5216T 6ft 32–62W Colour & Wattage Adjustable IP20 LED Pro Twin Batten

The Brackenheath BR5216T 6ft Twin LED Pro Batten is a high-output, energy-efficient replacement for traditional twin T8 fluorescent fittings. Designed for commercial and industrial environments, this robust luminaire features adjustable wattage and selectable colour temperature, giving installers complete flexibility at the point of installation.

Delivering up to 150 lumens per watt and a selectable light output from 4,800 to 9,300 lumens, the BR5216T provides powerful, uniform illumination while reducing energy consumption and ongoing maintenance costs.

Key Features

• 6ft twin LED batten – ideal retrofit for twin T8 fluorescent fittings
• Power selectable: 32W to 62W
• CCT selectable (CCT3): 3000K (Warm White), 4000K (Cool White) or 6000K (Daylight)
• High efficacy up to 150lm/W
• Light output range: 4,800lm to 9,300lm
• Wide 120° beam angle for consistent light distribution
• Durable steel body with polycarbonate diffuser
• Suitable for ceiling or suspended mounting
• 20mm conduit entry connection option
• IP20 rated – suitable for indoor use
• 220–240V supply
• 5-year manufacturer’s guarantee

Flexible Lighting Control

Internal multi-position switches allow selection of four wattage settings and three colour temperature options during installation. This makes the BR5216T ideal for warehouses, retail units, factories, schools and large commercial spaces where adaptable, high-performance lighting is essential.

Robust & Professional Construction

Manufactured with a strong steel housing and high-quality polycarbonate diffuser, this twin LED batten is built for durability and long-term reliability. Its clean, functional design ensures a professional finish in any commercial environment.

Technical Specifications

• Length: 6ft
• Wattage: 32W–62W (Selectable)
• Lumens: 4,800–9,300lm
• Efficacy: Up to 150lm/W
• Colour Temperatures: 3000K / 4000K / 6000K
• Beam Angle: 120°
• Voltage: 220–240V
• IP Rating: IP20

Data Sheet:
Download the BR5216T Data Sheet

Instruction Manual:
Download the BR5216T Instruction Manual
