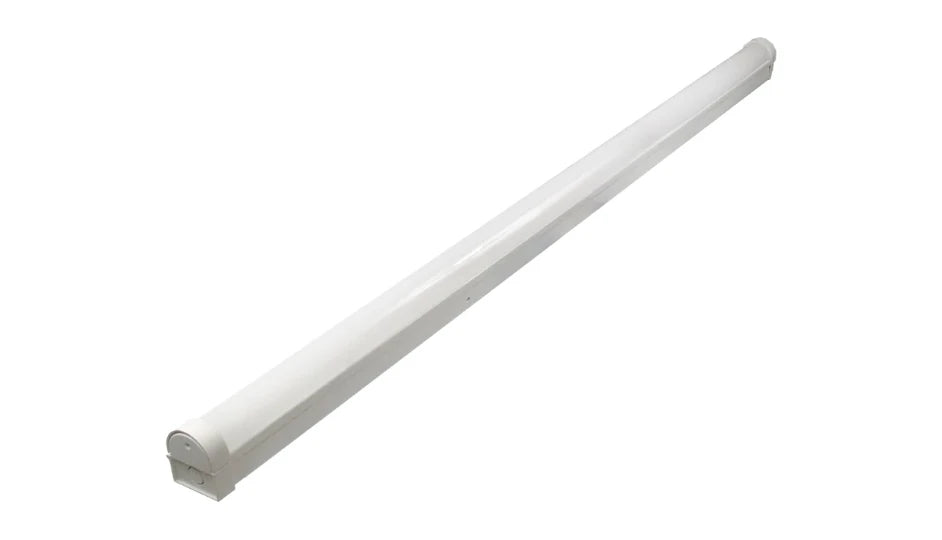

Brackenheath BR5216 6ft 20–38W Colour & Wattage Adjustable IP20 LED Pro Batten

The Brackenheath BR5216 6ft LED Pro Batten is a high-performance, energy-efficient alternative to traditional T8 fluorescent fittings. Designed for commercial and indoor installations, this versatile luminaire offers adjustable wattage and selectable colour temperature, allowing installers to customise light output and ambience to suit a wide range of environments.

With an impressive efficacy of up to 150 lumens per watt and adjustable light output from 3,000 to 5,700 lumens, the BR5216 delivers powerful, uniform illumination while helping to reduce energy consumption and ongoing maintenance costs.

Key Features

• 6ft LED batten – ideal retrofit replacement for T8 fluorescent fittings
• Power selectable: 20W to 38W
• CCT selectable (CCT3): 3000K (Warm White), 4000K (Cool White) or 6000K (Daylight)
• High efficiency up to 150lm/W
• Light output range: 3,000lm to 5,700lm
• Wide 120° beam angle for even light distribution
• Durable steel body with polycarbonate diffuser
• Suitable for ceiling or suspended mounting
• 20mm conduit entry connection option
• IP20 rated – suitable for indoor use
• 220–240V supply
• 5-year manufacturer’s guarantee

Flexible Installation & Lighting Control

Internal multi-position switches allow selection of four wattage settings and three colour temperature options during installation. This flexibility makes the BR5216 ideal for offices, warehouses, retail units, schools and other commercial settings where adaptable, high-performance lighting is required.

Robust & Professional Construction

Manufactured with a strong steel housing and a durable polycarbonate diffuser, this 6ft LED batten is built for long-term reliability. Its clean, professional design ensures a neat finish in any commercial environment.

Technical Specifications

• Length: 6ft
• Wattage: 20W–38W (Selectable)
• Lumens: 3,000–5,700lm
• Efficacy: Up to 150lm/W
• Colour Temperatures: 3000K / 4000K / 6000K
• Beam Angle: 120°
• Voltage: 220–240V
• IP Rating: IP20

Data Sheet:
Download the BR5216 Data Sheet

Instruction Manual:
Download the BR5216 Instruction Manual
