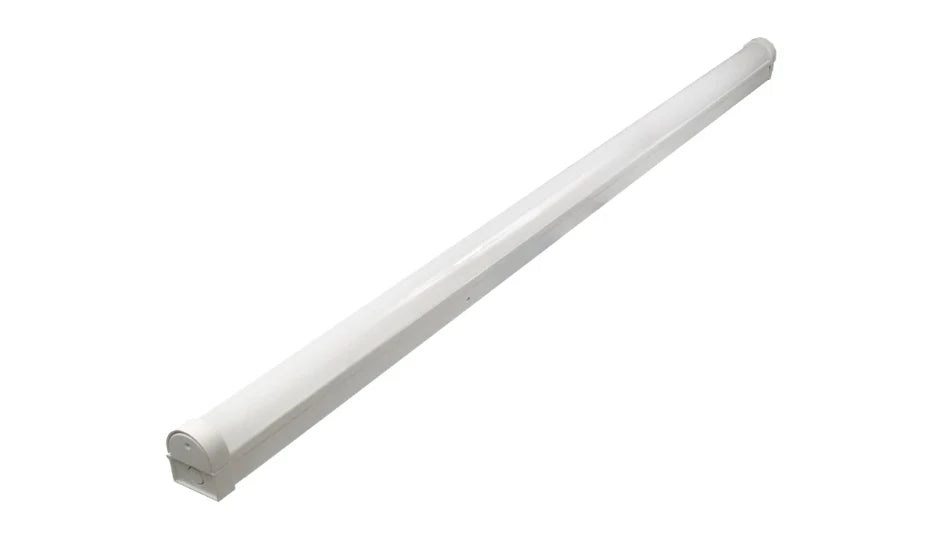

Brackenheath BR5215TE 5ft 29–53W Colour & Wattage Adjustable Twin LED Pro Batten with Emergency

The Brackenheath BR5215TE 5ft Twin LED Pro Batten with Emergency is a high-output, energy-efficient replacement for traditional twin T8 fluorescent fittings. Designed for commercial and industrial environments, this professional luminaire combines selectable wattage, adjustable colour temperature and a dependable 3-hour emergency function for enhanced safety and flexibility.

With an efficacy of up to 150 lumens per watt and adjustable light output ranging from 4,350 to 7,950 lumens, the BR5215TE delivers powerful, evenly distributed illumination while helping to lower energy costs and maintenance requirements.

Key Features

• 5ft twin LED emergency batten – ideal retrofit for twin T8 fluorescent fittings
• Power selectable: 29W to 53W
• CCT selectable (CCT3): 3000K (Warm White), 4000K (Cool White) or 6000K (Daylight)
• High efficiency up to 150lm/W
• Light output range: 4,350lm to 7,950lm
• Integrated 3-hour emergency duration
• 120° beam angle for wide, uniform light distribution
• Robust steel body with durable polycarbonate diffuser
• Suitable for ceiling or suspended mounting
• 20mm conduit entry connection option
• IP20 rated – suitable for indoor use
• 220–240V supply
• 5-year manufacturer’s guarantee

Adjustable Lighting for Commercial Applications

Internal multi-position switches allow installers to select from four wattage settings and three colour temperature options at installation. This makes the BR5215TE ideal for warehouses, retail premises, offices, educational facilities and other commercial settings requiring adaptable, high-performance lighting.

Integrated Emergency Backup

The built-in 3-hour emergency module ensures continued illumination in the event of a mains power failure, helping buildings meet emergency lighting requirements and improving occupant safety.

Technical Specifications

• Length: 5ft
• Wattage: 29W–53W (Selectable)
• Lumens: 4,350–7,950lm
• Efficacy: Up to 150lm/W
• Colour Temperatures: 3000K / 4000K / 6000K
• Beam Angle: 120°
• Emergency Duration: 3 hours
• Voltage: 220–240V
• IP Rating: IP20

Data Sheet:
Download the BR5215TE Data Sheet

Instruction Manual:
Download the BR5215TE Instruction Manual
