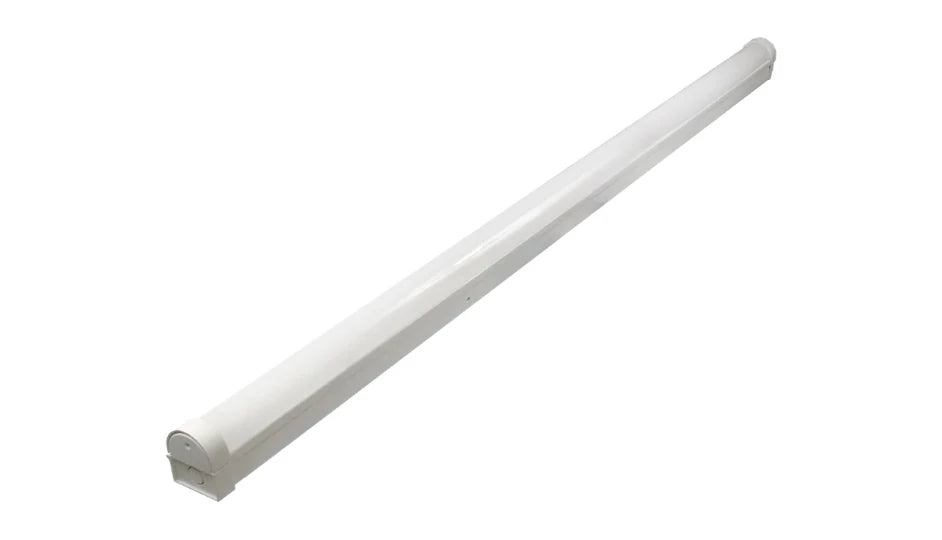

Brackenheath BR5215E 5ft 21–33W Colour & Wattage Adjustable LED Pro Batten with Emergency

The Brackenheath BR5215E 5ft LED Pro Batten with Emergency is a high-output, energy-efficient replacement for traditional T8 fluorescent fittings. Designed for commercial and indoor environments, this adaptable luminaire combines selectable wattage, adjustable colour temperature and a dependable 3-hour emergency function in one professional lighting solution.

With an impressive efficacy of up to 150 lumens per watt and adjustable light output from 3,150 to 4,950 lumens, the BR5215E delivers powerful, evenly distributed illumination while helping to reduce energy costs and maintenance requirements.

Key Features

• 5ft LED emergency batten – ideal retrofit for T8 fluorescent fittings
• Power selectable: 21W to 33W
• CCT selectable (CCT3): 3000K (Warm White), 4000K (Cool White) or 6000K (Daylight)
• High efficiency up to 150lm/W
• Light output range: 3,150lm to 4,950lm
• Integrated 3-hour emergency duration
• 120° beam angle for wide, uniform light coverage
• Robust steel body with durable polycarbonate diffuser
• Suitable for ceiling or suspended mounting
• 20mm conduit entry connection option
• IP20 rated – suitable for indoor use
• 220–240V supply
• 5-year manufacturer’s guarantee

Flexible Lighting Configuration

Internal multi-position switches allow installers to select from four power settings and three colour temperature options at installation. This makes the BR5215E suitable for offices, retail spaces, warehouses, schools and other commercial premises where adaptable lighting is essential.

Integrated Emergency Backup

The built-in 3-hour emergency module ensures continued illumination in the event of a mains power failure, supporting compliance with emergency lighting regulations and improving occupant safety.

Technical Specifications

• Length: 5ft
• Wattage: 21W–33W (Selectable)
• Lumens: 3,150–4,950lm
• Efficacy: Up to 150lm/W
• Colour Temperatures: 3000K / 4000K / 6000K
• Beam Angle: 120°
• Emergency Duration: 3 hours
• Voltage: 220–240V
• IP Rating: IP20

Data Sheet:
Download the BR5215E Data Sheet

Instruction Manual:
Download the BR5215E Instruction Manual
