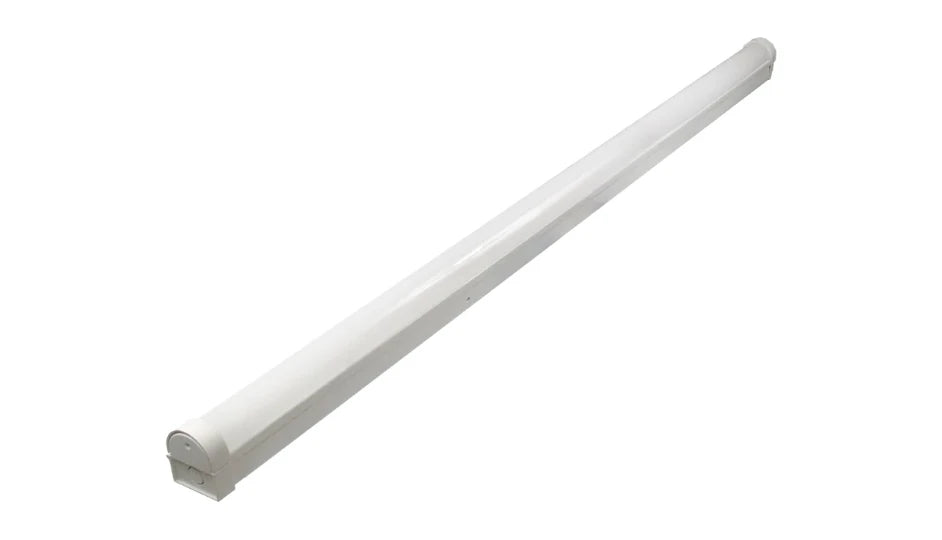

Brackenheath BR5215 5ft 21–33W Colour & Wattage Adjustable IP20 LED Pro Batten

The Brackenheath BR5215 5ft LED Pro Batten is a high-performance, energy-efficient alternative to traditional T8 fluorescent fittings. Designed for commercial and indoor environments, this versatile 5ft LED batten features selectable wattage and adjustable colour temperature, allowing you to tailor light levels and ambience to suit your space.

With an efficacy of up to 150 lumens per watt and adjustable light output ranging from 3,150 to 4,950 lumens, the BR5215 provides powerful, uniform illumination while reducing energy consumption and ongoing maintenance costs.

Key Features

• 5ft LED batten – ideal retrofit replacement for T8 fluorescent fittings
• Power selectable: 21W to 33W
• CCT selectable (CCT3): 3000K (Warm White), 4000K (Cool White) or 6000K (Daylight)
• High efficiency up to 150lm/W
• Light output range: 3,150lm to 4,950lm
• Wide 120° beam angle for consistent light distribution
• Durable steel body with polycarbonate diffuser
• Suitable for ceiling or suspended installation
• 20mm conduit entry connection option
• IP20 rated – suitable for indoor use
• 220–240V supply
• 5-year manufacturer’s guarantee

Flexible Lighting Control

Internal multi-position switches allow installers to select from four wattage settings and three colour temperatures during installation. This flexibility makes the BR5215 ideal for offices, retail spaces, warehouses, corridors and educational facilities where adaptable lighting is required.

Robust & Professional Design

Constructed with a strong steel housing and high-quality polycarbonate diffuser, this 5ft LED batten is built for durability and long-term performance. Its clean, streamlined design ensures a professional finish in commercial environments.

Technical Specifications

• Length: 5ft
• Wattage: 21W–33W (Selectable)
• Lumens: 3,150–4,950lm
• Efficacy: Up to 150lm/W
• Colour Temperatures: 3000K / 4000K / 6000K
• Beam Angle: 120°
• Voltage: 220–240V
• IP Rating: IP20

Data Sheet:
Download the BR5215 Data Sheet

Instruction Manual:
Download the BR5215 Instruction Manual
