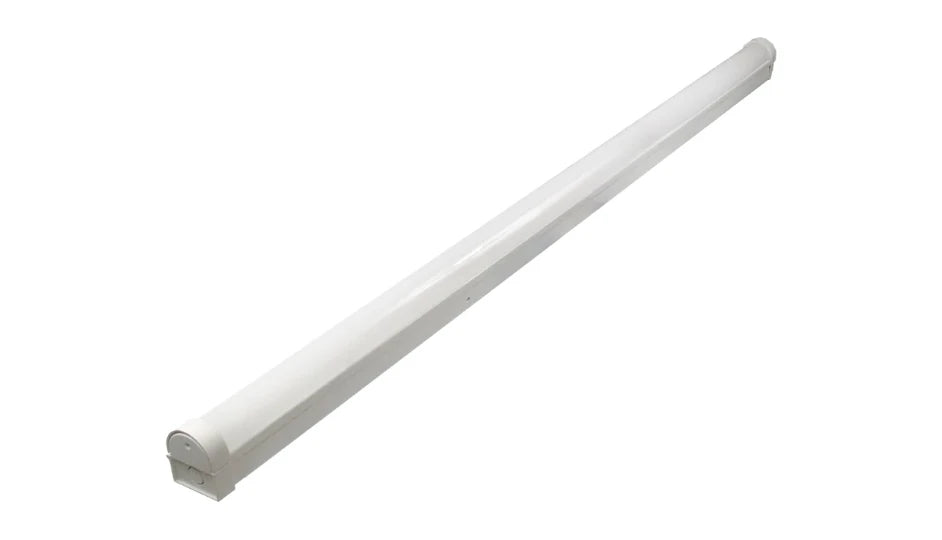

Brackenheath BR5214E 4ft 10-20W Colour & Wattage Adjustable IP20 LED Pro Batten with Emergency 3000K/4000K/6000K
Brackenheath BR5214E 4ft 10–20W Colour & Wattage Adjustable LED Pro Batten with Emergency
The Brackenheath BR5214E 4ft LED Pro Batten with Emergency is a high-performance, energy-efficient lighting solution designed as a direct retrofit replacement for traditional T8 fluorescent fittings. Engineered for commercial environments, this versatile LED batten combines adjustable wattage, selectable colour temperature and a 3-hour emergency function for enhanced safety and flexibility.
Delivering up to 150 lumens per watt and an adjustable light output between 1,500 and 3,000 lumens, the BR5214E ensures bright, uniform illumination while helping to reduce energy consumption and maintenance costs.
Key Features
- 4ft LED emergency batten – ideal retrofit for T8 fluorescent fittings
- Power selectable: 10W, 15W or 20W
- CCT selectable (CCT3): 3000K (Warm White), 4000K (Cool White) or 6000K (Daylight)
- High efficacy up to 150lm/W
- Adjustable output from 1,500lm to 3,000lm
- Integrated 3-hour emergency backup
- Wide 120° beam angle for even light distribution
- Steel body construction with durable polycarbonate diffuser
- Suitable for ceiling or suspended installation
- 20mm conduit entry connection option
- IP20 rated – suitable for indoor applications
- 220–240V supply
- 5-year manufacturer’s guarantee
Flexible Installation & Lighting Control
Internal multi-position switches allow installers to select from four power settings and three colour temperatures during installation. This makes the BR5214E suitable for offices, retail premises, educational facilities, warehouses and other commercial spaces where adaptable lighting is required.
Integrated Emergency Function
Featuring a 3-hour emergency duration, this LED batten provides reliable illumination in the event of a power failure, supporting compliance with emergency lighting requirements in commercial buildings.
Technical Specifications
- Length: 4ft
- Wattage: 10W–20W (Selectable)
- Lumens: 1,500–3,000lm
- Efficacy: Up to 150lm/W
- Colour Temperatures: 3000K / 4000K / 6000K
- Beam Angle: 120°
- Emergency Duration: 3 hours
- Voltage: 220–240V
- IP Rating: IP20
Data Sheet:
Download the BR5214E Data Sheet
Instruction Manual:
Download the BR5214E Instruction Manual
