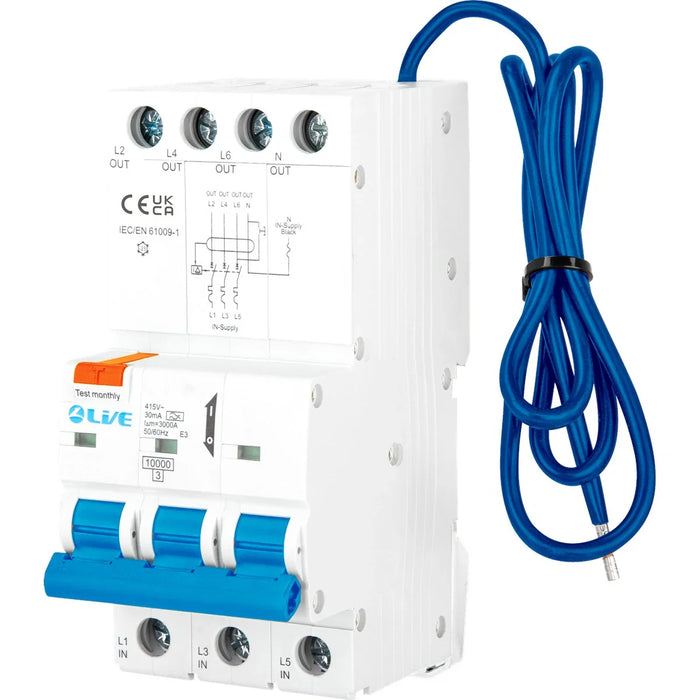

LIVE Electrical RTN350C-030N 3P+N 50A C Curve 10kA 30mA Type A RCBO
LIVE Electrical RTN350C-030N 3P+N 50A C Curve 10kA 30mA Type A RCBO
Product Overview
The LIVE Electrical RTN350C-030N is a reliable and high-capacity 3P+N Type A RCBO designed for use in three-phase electrical installations. Offering 50A rated current and C Curve tripping characteristics, this RCBO provides dependable protection against overload, short circuit, and residual current faults. It is ideal for circuits with moderate inrush currents, such as motor-driven equipment, lighting systems, and industrial machinery.
Compliant with BS EN 61009-1, the RTN350C-030N ensures safe operation and high performance. With Type A residual current detection, it effectively detects both AC and pulsating DC fault currents, ensuring enhanced safety for installations incorporating sensitive or electronic equipment. Its compact modular design allows for straightforward installation into distribution boards and control panels.
Key Specifications
- Rated Current (In): 50A
- Rated Voltage (Ue): 230/400V AC
- Breaking Capacity (Icn): 10kA
- Rated Residual Current: 30mA
- Pole Configuration: 3P+N
- Tripping Curve: C Curve – suitable for moderate inductive or mixed-load circuits
- Residual Current Type: Type A – detects AC and pulsating DC leakage currents
-
Terminal Capacity:
- Input: up to 16mm²
- Output: up to 10mm²
- Compliance: BS EN 61009-1
Features & Benefits
- Combines overload, short circuit, and residual current protection in a single compact device.
- 10kA breaking capacity ensures reliability in high-demand environments.
- C Curve tripping for circuits with moderate inductive loads such as motors and pumps.
- Type A sensitivity for detecting AC and pulsating DC fault currents.
- Compact modular design for efficient installation in distribution boards.
- Suitable for industrial, commercial, and light manufacturing applications.
