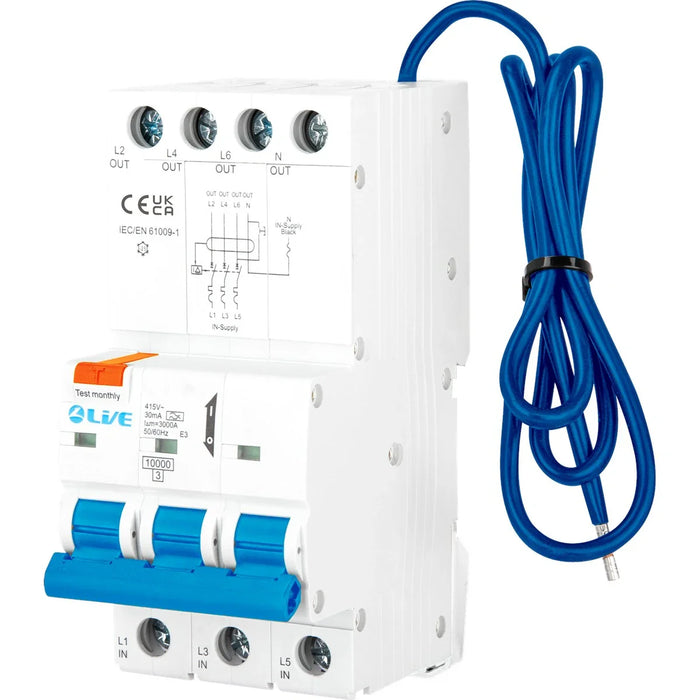

LIVE Electrical RTN325C-030N 3P+N 25A C Curve 10kA 30mA Type A RCBO
LIVE Electrical RTN325C-030N 3P+N 25A C Curve 10kA 30mA Type A RCBO
Product Overview
The LIVE Electrical RTN325C-030N is a high-quality 3P+N Type A RCBO that delivers exceptional protection against overload, short circuit, and residual current faults. With a 25A current rating and a C Curve tripping characteristic, this unit is perfectly suited for circuits with moderate inductive or capacitive loads such as air conditioning systems, small machinery, and mixed-load applications in industrial and commercial settings.
Fully compliant with BS EN 61009-1 standards, this RCBO combines reliability with efficiency. Its Type A sensitivity ensures detection of both AC and pulsating DC leakage currents, offering superior protection for modern electrical systems incorporating sensitive electronic devices. Compact, robust, and easy to install, it is a dependable choice for professional installations.
Key Specifications
- Rated Current (In): 25A
- Rated Voltage (Ue): 230/400V AC
- Breaking Capacity (Icn): 10kA
- Rated Residual Current: 30mA
- Pole Configuration: 3P+N
- Tripping Curve: C Curve – suitable for circuits with moderate inrush currents
- Residual Current Type: Type A – detects both AC and pulsating DC leakage currents
-
Terminal Capacity:
- Input: up to 16mm²
- Output: up to 10mm²
- Standard Compliance: BS EN 61009-1
Features & Benefits
- Offers combined protection against overloads, short circuits, and earth leakage faults.
- 10kA high breaking capacity for enhanced circuit safety and reliability.
- C Curve tripping characteristic optimised for inductive and mixed-load applications.
- Type A sensitivity ensures detection of both AC and pulsating DC fault currents.
- Compact and modular design allows easy integration into three-phase distribution systems.
- Ideal for industrial, commercial, and light manufacturing environments.
