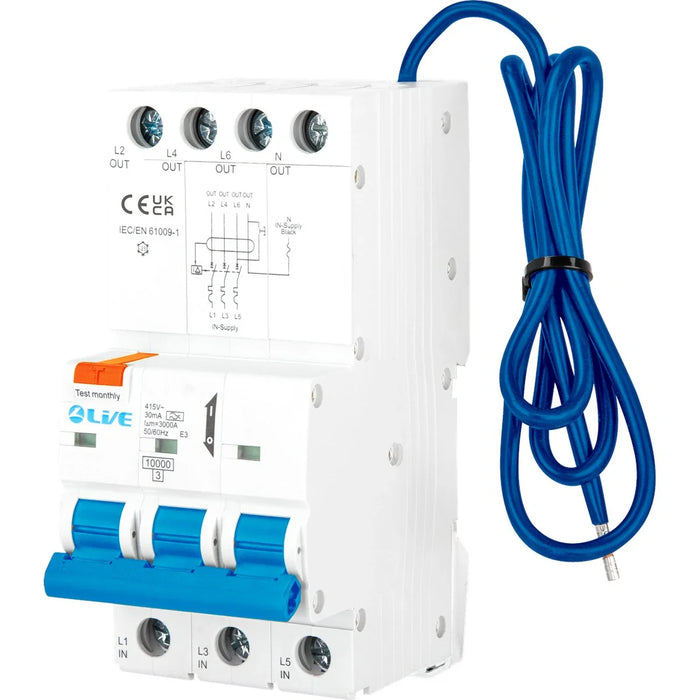

LIVE Electrical RTN320C-030N 3P+N 20A C Curve 10kA 30mA Type A RCBO
LIVE Electrical RTN320C-030N 3P+N 20A C Curve 10kA 30mA Type A RCBO
Product Overview
The LIVE Electrical RTN320C-030N is a dependable 3P+N Type A RCBO designed to deliver superior overload, short circuit, and residual current protection for three-phase installations. With a 20A rated current and a C Curve tripping characteristic, this RCBO is ideal for circuits with moderate inductive or capacitive loads such as air conditioning units, motors, and lighting systems in commercial and industrial applications.
Complying with BS EN 61009-1 standards, the RTN320C-030N features Type A sensitivity to detect both AC and pulsating DC fault currents, ensuring enhanced electrical safety for modern equipment. Its compact and modular design allows for quick installation, making it a reliable solution for professionals looking for robust protection in demanding environments.
Key Specifications
- Rated Current (In): 20A
- Rated Voltage (Ue): 230/400V AC
- Breaking Capacity (Icn): 10kA
- Rated Residual Current: 30mA
- Pole Configuration: 3P+N
- Tripping Curve: C Curve – suitable for circuits with moderate inrush currents
- Residual Current Type: Type A – detects both AC and pulsating DC leakage currents
-
Terminal Capacity:
- Input: up to 16mm²
- Output: up to 10mm²
- Standard Compliance: BS EN 61009-1
Features & Benefits
- Combines overload, short circuit, and earth leakage protection in one compact device.
- 10kA high breaking capacity ensures safety in demanding electrical conditions.
- C Curve tripping characteristic ideal for inductive or mixed-load applications.
- Type A protection suitable for detecting both AC and pulsating DC faults.
- Compact modular construction for easy integration into distribution panels.
- Perfect for commercial, industrial, and mixed-use electrical systems.
