LIVE Electrical RTN316C-030N 3P+N 16A C Curve 10kA 30mA Type A RCBO

LIVE Electrical RTN316C-030N 3P+N 16A C Curve 10kA 30mA Type A RCBO

Product Overview

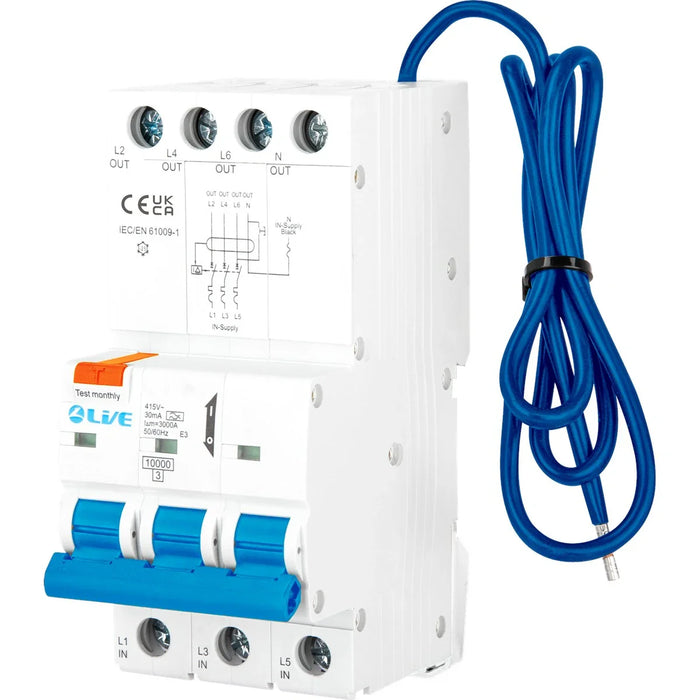

The LIVE Electrical RTN316C-030N is a reliable and compact 3P+N Type A RCBO that combines overload, short circuit, and residual current protection into one high-performance device. With a 16A rated current and a C Curve tripping characteristic, it is ideal for protecting circuits with moderate inductive loads, such as small motors, pumps, or lighting systems in commercial and industrial applications.

Fully compliant with BS EN 61009-1, this RCBO features Type A sensitivity to detect both AC and pulsating DC fault currents. Designed for use in modern electrical systems, it offers dependable safety for installations containing sensitive electronic components, while maintaining consistent performance under demanding conditions.

Key Specifications

• Rated Current (In): 16A
• Rated Voltage (Ue): 230/400V AC
• Breaking Capacity (Icn): 10kA
• Rated Residual Current: 30mA
• Pole Configuration: 3P+N
• Tripping Curve: C Curve – designed for circuits with moderate inrush currents
• Residual Current Type: Type A – detects both AC and pulsating DC leakage currents
• Terminal Capacity:
  • Input: up to 16mm²
  • Output: up to 10mm²
• Standard Compliance: BS EN 61009-1

Features & Benefits

• Combines overload, short circuit, and earth leakage protection in a single compact unit.
• 10kA high breaking capacity ensures safe operation during fault conditions.
• C Curve tripping for reliable performance with inductive loads such as motors and HVAC systems.
• Type A protection ideal for detecting AC and pulsating DC faults in modern installations.
• Compact modular design suitable for commercial and industrial distribution boards.
• Robust and efficient protection for mixed-load and motor-driven systems.
