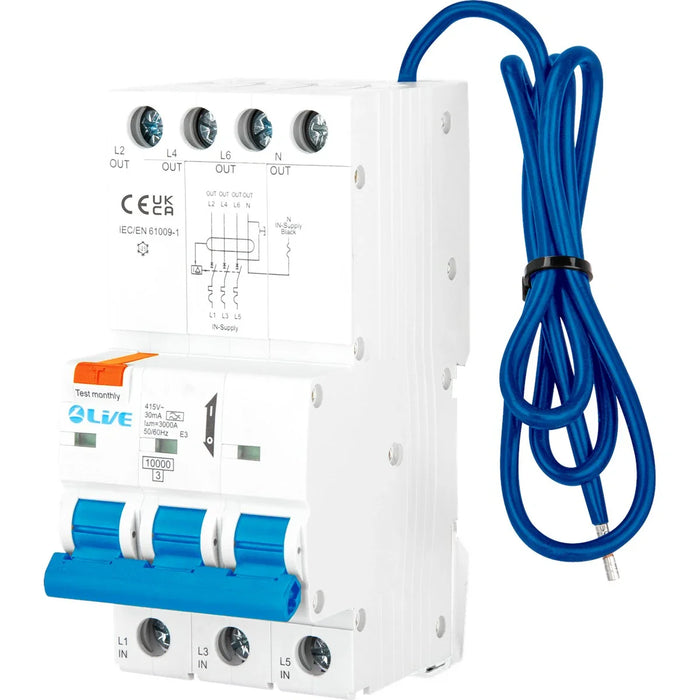

LIVE Electrical RTN316B-030N 3P+N 16A B Curve 10kA 30mA Type A RCBO
LIVE Electrical RTN316B-030N 3P+N 16A B Curve 10kA 30mA Type A RCBO
Product Overview
The LIVE Electrical RTN316B-030N is a reliable 3P+N Type A RCBO designed to deliver complete protection for three-phase electrical installations. Combining overload, short circuit, and earth leakage protection in one compact device, it is ideal for commercial, industrial, and light commercial environments. With a 16A B Curve tripping characteristic and a 10kA breaking capacity, this RCBO ensures dependable performance and enhanced circuit safety.
Conforming to BS EN 61009-1 standards, the RTN316B-030N offers both performance and compliance for modern electrical systems. Its Type A sensitivity allows for detection of both AC and pulsating DC residual currents, making it suitable for circuits with modern loads such as EV chargers, variable speed drives, and LED lighting installations.
Key Specifications
- Rated Current (In): 16A
- Rated Voltage (Ue): 230/400V AC
- Breaking Capacity (Icn): 10kA
- Rated Residual Current: 30mA
- Pole Configuration: 3P+N
- Tripping Curve: B Curve – suitable for resistive and light inductive loads
- Residual Current Type: Type A – detects both AC and pulsating DC leakage currents
-
Terminal Capacity:
- Input: up to 16mm²
- Output: up to 10mm²
- Standard Compliance: BS EN 61009-1
Features & Benefits
- Combines short circuit, overload, and earth leakage protection in a single compact device.
- 10kA high breaking capacity for enhanced reliability and safety in demanding circuits.
- Type A sensitivity suitable for modern electronic and mixed-load installations.
- B Curve tripping – ideal for standard lighting, heating, and socket outlet applications.
- Compact modular design with clear labelling for easy identification and wiring.
- Perfect for use in commercial distribution boards, workshops, and small industrial systems.
