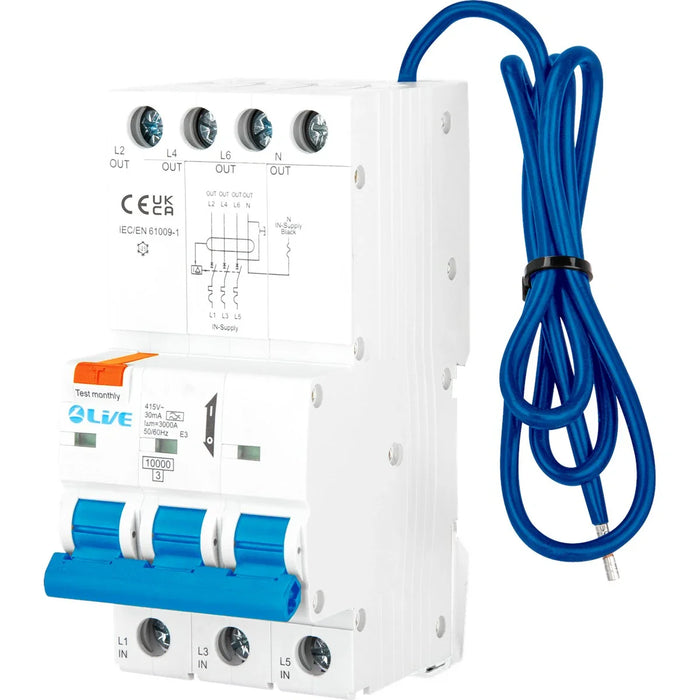

LIVE Electrical RTN310C-030N 3P+N 10A C Curve 10kA 30mA Type A RCBO
LIVE Electrical RTN310C-030N 3P+N 10A C Curve 10kA 30mA Type A RCBO
Product Overview
The LIVE Electrical RTN310C-030N is a durable and high-performance 3P+N Type A RCBO designed to provide comprehensive overload, short circuit, and residual current protection in three-phase electrical systems. With a 10A rating and C Curve tripping characteristic, it is ideal for circuits with moderate inductive loads such as motors, fans, and transformers, ensuring stability and safety during operation.
Tested to BS EN 61009-1 standards, this RCBO features Type A sensitivity, capable of detecting both AC and pulsating DC fault currents, making it suitable for modern installations that include electronic equipment and LED lighting systems. The compact modular design allows for easy integration into industrial and commercial distribution boards.
Key Specifications
- Rated Current (In): 10A
- Rated Voltage (Ue): 230/400V AC
- Breaking Capacity (Icn): 10kA
- Rated Residual Current: 30mA
- Pole Configuration: 3P+N
- Tripping Curve: C Curve – suitable for moderate inductive loads
- Residual Current Type: Type A – detects AC and pulsating DC leakage currents
-
Terminal Capacity:
- Input: up to 16mm²
- Output: up to 10mm²
- Standard Compliance: BS EN 61009-1
Features & Benefits
- Provides overload, short circuit, and earth leakage protection in one device.
- 10kA high breaking capacity for enhanced circuit protection and reliability.
- C Curve tripping characteristic designed for circuits with moderate inrush currents.
- Type A protection suitable for circuits with AC and pulsating DC residual currents.
- Compact modular design fits seamlessly into three-phase distribution boards.
- Ideal for use in commercial, industrial, and mixed-load applications.
