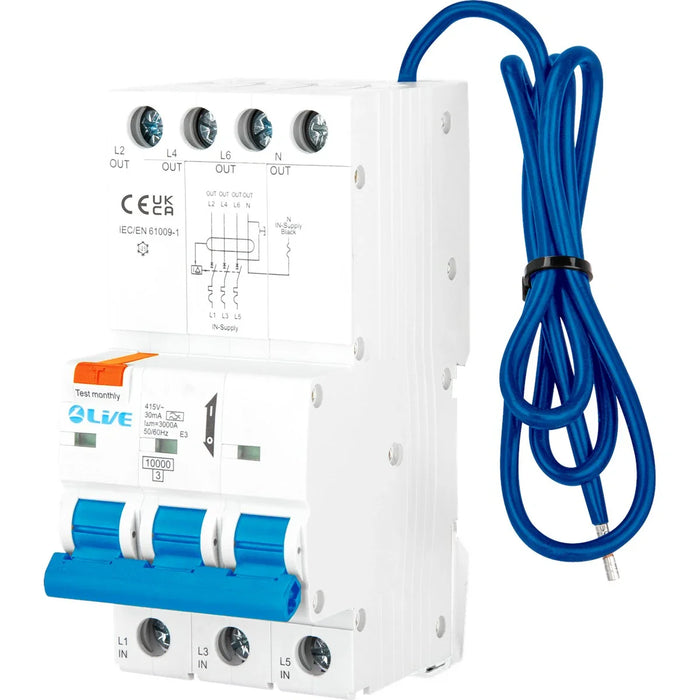

LIVE Electrical RTN306C-030N 3P+N 6A C Curve 10kA 30mA Type A RCBO
LIVE Electrical RTN306C-030N 3P+N 6A C Curve 10kA 30mA Type A RCBO
Product Overview
The LIVE Electrical RTN306C-030N is a compact and high-performance 3P+N Type A RCBO offering combined overload, short circuit, and residual current protection for three-phase systems. With a 6A C Curve tripping characteristic and a robust 10kA breaking capacity, this RCBO ensures safety and reliability in commercial, industrial, and light manufacturing environments. Designed for modern electrical systems, it provides essential protection for circuits with higher inrush currents, such as motors or transformers.
Compliant with BS EN 61009-1, the RTN306C-030N features Type A residual current detection, responding to both AC and pulsating DC fault currents — making it ideal for installations with electronic loads such as LED lighting, EV chargers, and automation systems.
Key Specifications
- Rated Current (In): 6A
- Rated Voltage (Ue): 230/400V AC
- Breaking Capacity (Icn): 10kA
- Rated Residual Current: 30mA
- Pole Configuration: 3P+N
- Tripping Curve: C Curve – ideal for inductive and motor-type loads
- Residual Current Type: Type A – detects both AC and pulsating DC leakage currents
-
Terminal Capacity:
- Input: up to 16mm²
- Output: up to 10mm²
- Standard Compliance: BS EN 61009-1
Features & Benefits
- Combines overload, short circuit, and residual current protection in one device.
- 10kA high breaking capacity ensures safe disconnection under fault conditions.
- C Curve tripping characteristic for circuits with moderate inrush currents (e.g., motors, compressors).
- Type A residual protection ideal for detecting AC and pulsating DC fault currents.
- Compact modular design suitable for commercial and industrial distribution boards.
- Provides reliable circuit protection for sensitive and high-demand equipment.
