Product Overview

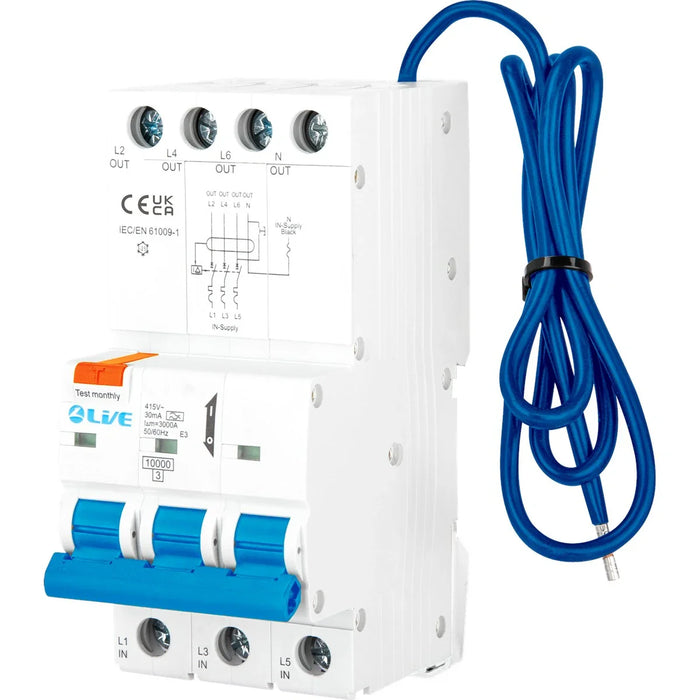

The LIVE Electrical RTN306B-030N is a high-performance Type A 3P+N RCBO designed to provide both residual current and overcurrent protection in three-phase systems. With a 6A B Curve tripping characteristic and a 10kA breaking capacity, this device ensures reliable protection against short circuits, overloads, and earth leakage faults in commercial, industrial, and light commercial applications.
Manufactured to BS EN 61009-1 standards, the RTN306B-030N offers robust performance and compliance for modern electrical installations. Its compact design and easy terminal access make installation straightforward, while the Type A sensitivity ensures effective protection against AC and pulsating DC residual currents from electronic equipment and variable speed drives.
Key Specifications
- Rated Current (In): 6A
- Rated Voltage (Ue): 230/400V AC
- Breaking Capacity (Icn): 10kA
- Rated Residual Current: 30mA
- Pole Configuration: 3P+N
- Tripping Curve: B Curve – ideal for resistive and light inductive loads
- Residual Current Type: Type A – protects against AC and pulsating DC leakage currents
-
Terminal Capacity:
- Input: up to 16mm²
- Output: up to 10mm²
- Standard Compliance: BS EN 61009-1
Features & Benefits
- Combines short circuit, overload, and earth leakage protection in a single compact device.
- 10kA high breaking capacity ensures enhanced system safety.
- Type A sensitivity suitable for circuits containing modern electronic loads.
- B Curve tripping provides reliable protection for resistive or low-inductance circuits.
- Quick and easy installation with clearly marked terminals.
- Ideal for use in three-phase distribution boards, EV installations, and machinery control panels.
