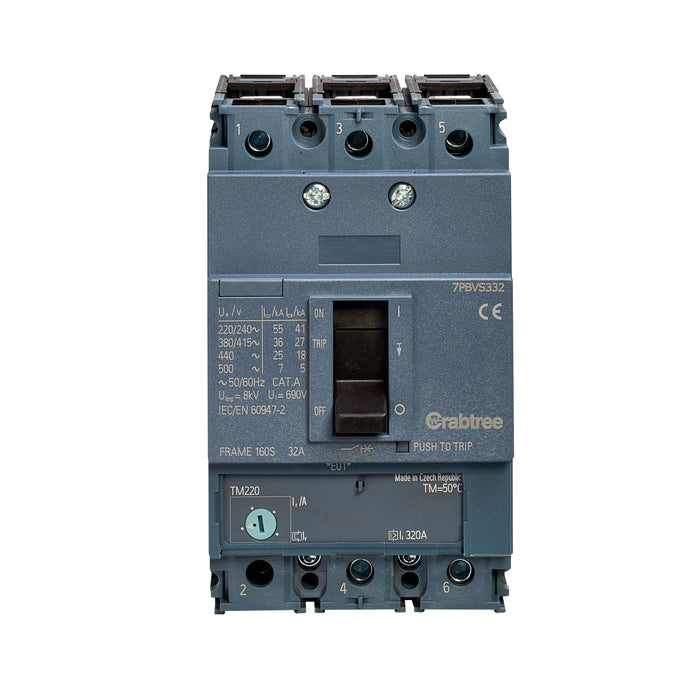

Crabtree 7PBVS332 Powerstar 32A 36kA 3P MCCB ATFM with Box Terminals

The Crabtree 7PBVS332 Powerstar MCCB is a high-performance 32A three pole moulded case circuit breaker designed for commercial and industrial three phase distribution systems where increased fault level protection is required. With a 36kA breaking capacity at 415V AC, it provides enhanced protection against overloads and short circuits in accordance with BS EN 60947-2.

Incorporating adjustable thermal and fixed magnetic (ATFM) trip elements, this MCCB enables precise overload setting adjustment while ensuring rapid magnetic short-circuit protection. Supplied complete with box terminals fitted on both line and load sides, it guarantees secure and efficient cable termination. Additional termination accessories are available if required.

This breaker is specifically designed for use in Crabtree Powerstar VM160 outgoing ways, making it suitable for panel board upgrades, system expansions or direct replacements within compatible Powerstar distribution assemblies.

Key Features

• 32A three pole (3P) moulded case circuit breaker
• 36kA breaking capacity at 415V AC
• Compliant with BS EN 60947-2
• Adjustable thermal and fixed magnetic trip elements (ATFM)
• Box terminals fitted on line and load sides
• Additional termination accessories available
• Designed for Powerstar VM160 outgoing ways only

Applications

Suitable for commercial and industrial three phase installations requiring higher fault level protection within Crabtree Powerstar VM160 panel boards.

Technical Specifications

• Rated Current: 32A
• Number of Poles: 3P
• Breaking Capacity: 36kA at 415V AC
• Trip Type: Adjustable thermal and fixed magnetic
• Standard: BS EN 60947-2
• Terminal Type: Box terminals (line and load)

Data Sheet:
View and download the Crabtree 7PBVS332 data sheet
