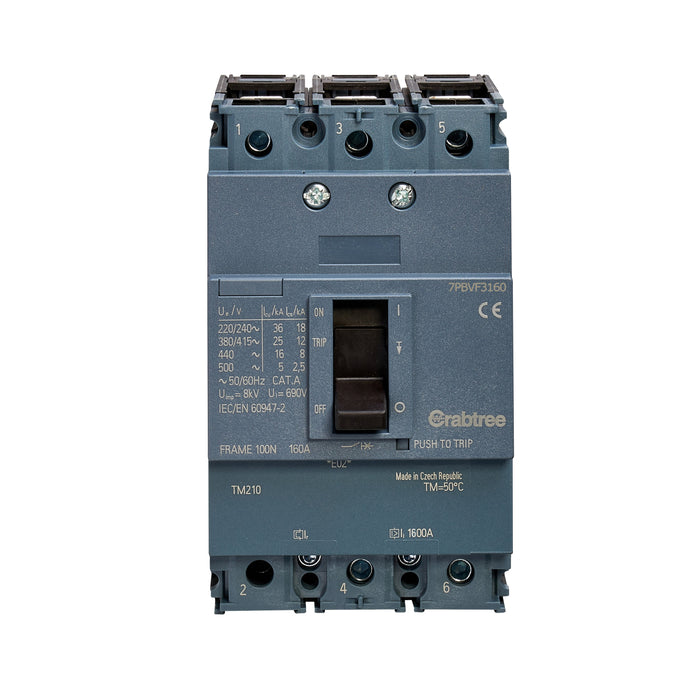

Crabtree 7PBVF3160 Powerstar 160A 25kA 3P MCCB FTFM with Box Terminals

The Crabtree 7PBVF3160 Powerstar MCCB is a heavy-duty 160A three pole moulded case circuit breaker designed for reliable protection in commercial and industrial three phase distribution systems. With a 25kA breaking capacity at 415V AC, it provides dependable defence against overloads and short circuits in accordance with BS EN 60947-2.

Featuring fixed thermal and magnetic (FTFM) trip elements, this MCCB offers consistent, factory-set protection characteristics for straightforward installation and application. It is supplied complete with box terminals fitted on both line and load sides, ensuring secure and efficient cable termination. Additional termination accessories are available if required.

This model is specifically intended for use in Crabtree Powerstar VM160 outgoing ways, making it ideal for panel board upgrades, replacements or new installations within compatible Powerstar distribution systems.

Key Features

• 160A three pole (3P) moulded case circuit breaker
• 25kA breaking capacity at 415V AC
• Compliant with BS EN 60947-2
• Fixed thermal and magnetic trip elements (FTFM)
• Box terminals fitted on line and load sides
• Additional termination accessories available
• Designed for Powerstar VM160 outgoing ways only

Applications

Suitable for commercial and industrial three phase installations requiring dependable overcurrent and short-circuit protection within Crabtree Powerstar assemblies.

Technical Specifications

• Rated Current: 160A
• Number of Poles: 3P
• Breaking Capacity: 25kA at 415V AC
• Trip Type: Fixed thermal and magnetic
• Standard: BS EN 60947-2
• Terminal Type: Box terminals (line and load)

Data Sheet:
View and download the Crabtree 7PBVF3160 data sheet
