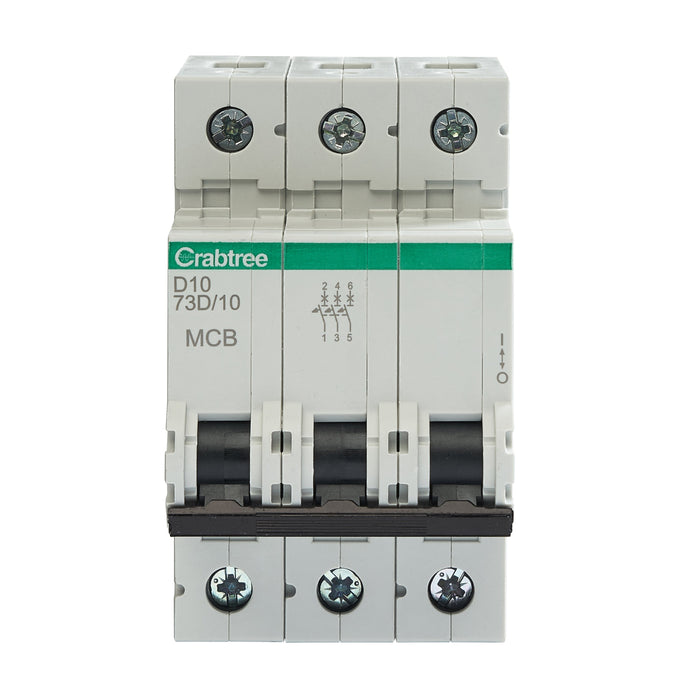

Crabtree 73D/10 Polestar Compact 10A D Curve 16kA TP MCB
The Crabtree 73D/10 Polestar Compact Miniature Circuit Breaker is a robust 10A triple pole MCB engineered for the protection of three-phase electrical circuits with high inrush currents. Featuring a D curve trip characteristic and a powerful 16kA breaking capacity, it is ideally suited to demanding industrial applications involving motors, transformers, and inductive loads.
Key Features
- 10A rated current
- D curve trip characteristic (10–20 In)
- 16kA breaking capacity to BS EN 60898-1
- 15kA rating to BS EN 60947-2
- Triple pole MCB for three-phase circuit protection
- 3 module width construction
- Energy limiting Class 3 performance
Applications
Suitable for commercial and industrial three-phase installations where high inrush currents are expected, including motor control circuits, machinery protection, and transformer-fed systems.
Standards & Compliance
Manufactured in accordance with BS EN 60898-1 and BS EN 60947-2, ensuring full compliance with current UK electrical standards.
