Crabtree 701C/503 Polestar Compact 1 Module 50A C Curve 30mA 16kA 1P+N Type A RCBO
by Crabtree
SKU 701C/503
Availability:
Dispatch in 2-5 Days
Original price
£86.52
-
Original price
£86.52
Original price
£72.10
Exc VAT
£86.52
Inc VAT
£86.52
-
£86.52
Current price
£86.52
£86.52
-
£86.52
Current price
£86.52

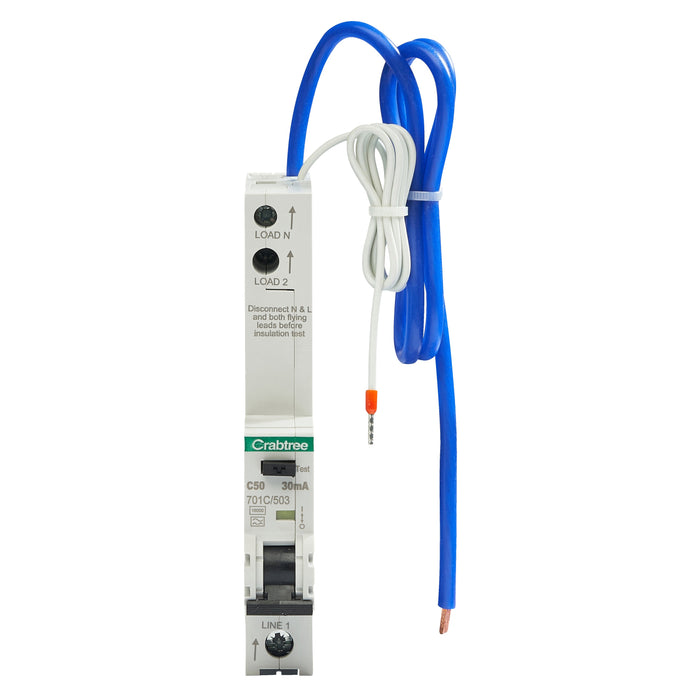

Crabtree 701C/503 Polestar Compact 50A Type A RCBO – 1P+N
Product Overview
The Crabtree 701C/503 Polestar Compact RCBO is designed to protect higher-current final circuits by combining overcurrent and residual current protection within a compact single-module device. With a 50A C curve rating and 30mA Type A sensitivity, it delivers dependable performance in commercial and industrial installations using Crabtree Polestar Compact distribution boards.
Key Features
- 50A C curve RCBO providing combined MCB and RCD protection
- 30mA Type A protection for AC and pulsating DC earth leakage currents
- High 16kA short-circuit breaking capacity for demanding environments
- Compact single-module 1P+N design to maximise usable board space
- Supplied with 600mm neutral and earth flying leads for quick installation
- Compatible with Crabtree Polestar Compact distribution boards
Technical Specification
- Rated Current: 50A
- Tripping Characteristic: C Curve
- Residual Operating Current: 30mA
- Breaking Capacity: 16kA
- Poles: 1P+N
- Device Type: Type A RCBO
- Module Width: 1 Module
Documentation
Data Sheet: Click here to view the manufacturer’s data sheet
