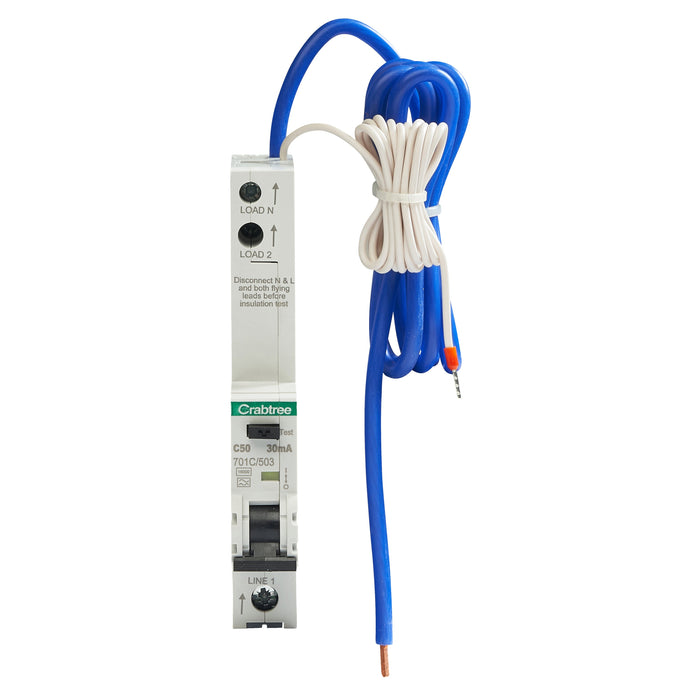

Crabtree 701C/503/LT Polestar Compact 1 Module 50A C Curve 30mA 16kA 1P+N Type A RCBO Long Tail
by Crabtree
SKU 701C/503/LT
Availability:
Dispatch in 2-5 Days
Original price
£90.85
-
Original price
£90.85
Original price
£75.71
Exc VAT
£90.85
Inc VAT
£90.85
-
£90.85
Current price
£90.85
£90.85
-
£90.85
Current price
£90.85
Crabtree 701C/503/LT Polestar Compact 50A Type A RCBO – Long Tail
Product Overview
The Crabtree 701C/503/LT Polestar Compact RCBO is designed to protect high-current final circuits by combining overcurrent and residual current protection in a compact single-module format. Supplied with extended 1200mm neutral and earth flying leads, this 50A C curve Type A RCBO offers enhanced installation flexibility within Crabtree Polestar Compact distribution boards.
Key Features
- 50A C curve RCBO delivering combined MCB and RCD protection
- 30mA Type A sensitivity for detection of AC and pulsating DC earth leakage currents
- High 16kA short-circuit breaking capacity for demanding commercial and industrial applications
- Long tail version supplied with 1200mm neutral and earth flying leads
- Single-module 1P+N design to maximise usable space within the distribution board
- Designed for use in Crabtree Polestar Compact distribution boards
Technical Specification
- Rated Current: 50A
- Tripping Characteristic: C Curve
- Residual Operating Current: 30mA
- Breaking Capacity: 16kA
- Poles: 1P+N
- Device Type: Type A RCBO
- Module Width: 1 Module
- Neutral & Earth Tail Length: 1200mm
Documentation
Data Sheet: Click here to view the manufacturer’s data sheet
