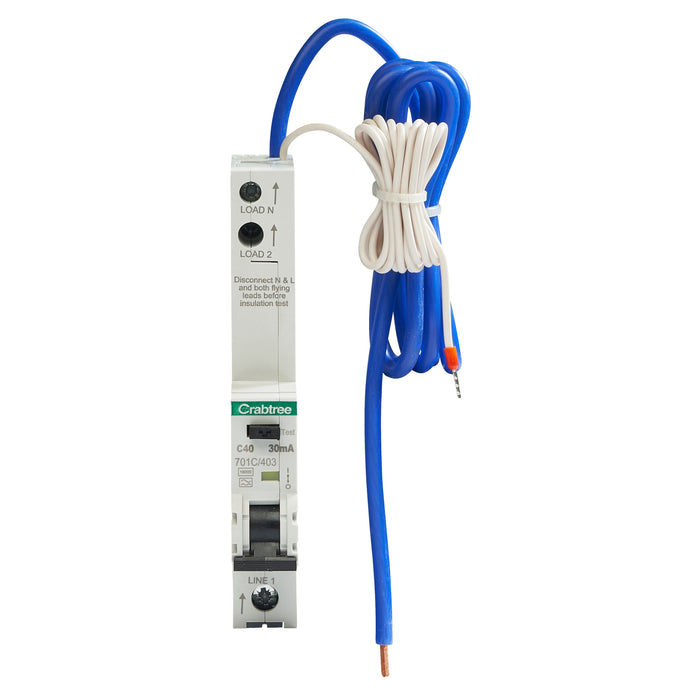

Crabtree 701C/403/LT Polestar Compact 40A Type A RCBO – Long Tail
Product Overview
The Crabtree 701C/403/LT Polestar Compact RCBO is designed for higher-current circuits, combining overcurrent and residual current protection in a compact single-module format. Supplied with extended 1200mm neutral and earth flying leads, this 40A C curve Type A RCBO provides added installation flexibility within Crabtree Polestar Compact distribution boards.
Key Features
- 40A C curve RCBO delivering combined MCB and RCD protection
- 30mA Type A sensitivity for detection of AC and pulsating DC earth leakage currents
- High 16kA short-circuit breaking capacity for commercial and industrial environments
- Long tail version supplied with 1200mm neutral and earth flying leads
- Single-module 1P+N design to maximise usable space within the distribution board
- Designed for use in Crabtree Polestar Compact distribution boards
Technical Specification
- Rated Current: 40A
- Tripping Characteristic: C Curve
- Residual Operating Current: 30mA
- Breaking Capacity: 16kA
- Poles: 1P+N
- Device Type: Type A RCBO
- Module Width: 1 Module
- Neutral & Earth Tail Length: 1200mm
Documentation
Data Sheet: Click here to view the manufacturer’s data sheet
