Crabtree 701C/203/LT Polestar Compact 1 Module 20A C Curve 30mA 16kA 1P+N Type A RCBO Long Tail
by Crabtree
SKU 701C/203/LT
Availability:
Dispatch in 2-5 Days
Original price
£90.85
-
Original price
£90.85
Original price
£75.71
Exc VAT
£90.85
Inc VAT
£90.85
-
£90.85
Current price
£90.85
£90.85
-
£90.85
Current price
£90.85

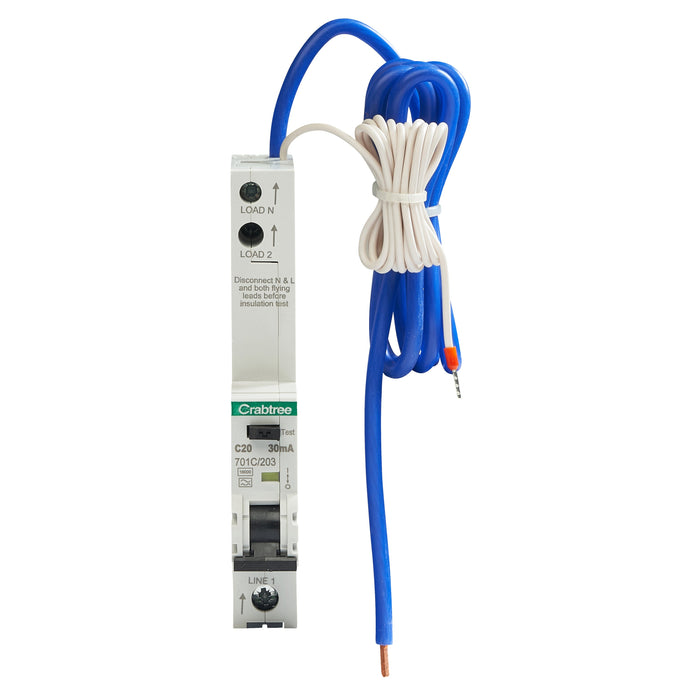

Crabtree 701C/203/LT Polestar Compact 20A Type A RCBO – Long Tail
Product Overview
The Crabtree 701C/203/LT Polestar Compact RCBO delivers dependable combined overcurrent and residual current protection in a compact single-module format and is supplied with extended 1200mm neutral and earth flying leads. Rated at 20A with a C curve tripping characteristic, this Type A RCBO is ideal for installations requiring additional wiring flexibility within Crabtree Polestar Compact distribution boards.
Key Features
- 20A C curve RCBO combining MCB and RCD protection in one compact device
- 30mA Type A sensitivity for protection against AC and pulsating DC earth leakage currents
- High 16kA short-circuit breaking capacity for commercial and industrial applications
- Long tail version supplied with 1200mm neutral and earth flying leads
- Single-module 1P+N design to maximise space within the distribution board
- Designed for use in Crabtree Polestar Compact distribution boards
Technical Specification
- Rated Current: 20A
- Tripping Characteristic: C Curve
- Residual Operating Current: 30mA
- Breaking Capacity: 16kA
- Poles: 1P+N
- Device Type: Type A RCBO
- Module Width: 1 Module
- Neutral & Earth Tail Length: 1200mm
Documentation
Data Sheet: Click here to view the manufacturer’s data sheet
