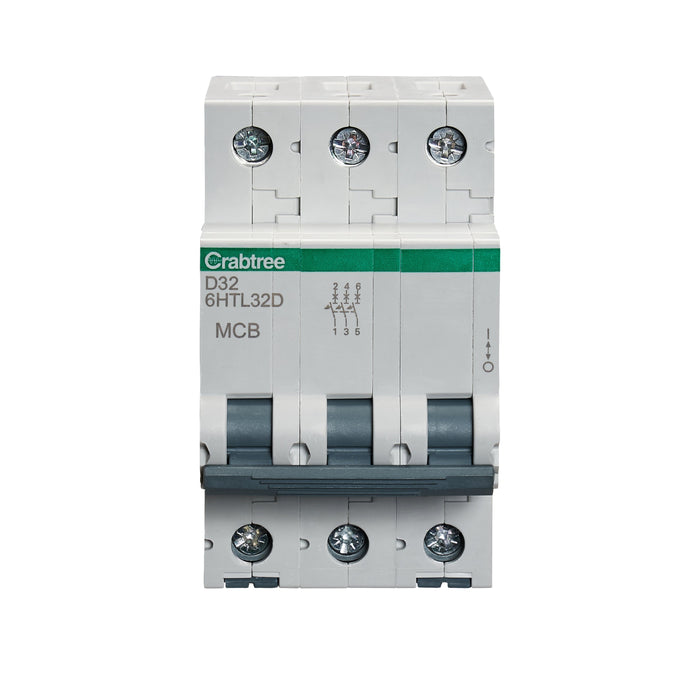

Crabtree 6HTL32D Loadstar 32A Triple Pole Type D 10kA MCB
The Crabtree 6HTL32D Loadstar 32A Triple Pole Type D Miniature Circuit Breaker is designed to provide dependable protection for electrical circuits with high inrush currents. Ideal for commercial and industrial installations, this MCB offers robust performance, rapid fault disconnection, and full compliance with current British Standards.
Featuring a Type D trip characteristic, the 6HTL32D is particularly suited for applications such as motors, transformers, and heavy-duty equipment where transient current surges are expected.
Key Features
- 32A rated current with triple pole (TP) configuration
- Type D trip curve (10–20 × In) for high inrush current protection
- High 10kA breaking capacity to BS EN 60898-1
- 15kA rating to BS EN 60947-2 at 240V AC
- Energy limiting Class 3 for enhanced fault protection
- Compatible with Crabtree Loadstar distribution boards
Technical Standards
Manufactured to meet stringent safety and performance requirements, this MCB complies with:
- BS EN 60898-1
- BS EN 60947-2
