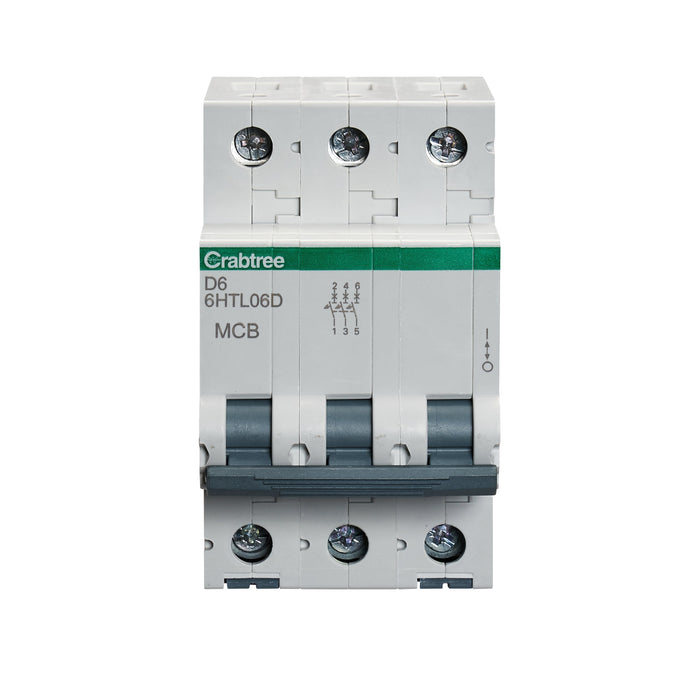

Crabtree 6HTL06D Loadstar 6A Triple Pole D Curve 10kA MCB
Crabtree 6HTL06D Loadstar 6A Triple Pole Type D 10kA MCB
Product Description
The Crabtree 6HTL06D Loadstar 6A Type D Triple Pole Miniature Circuit Breaker is designed to provide robust protection against overloads and short circuits in demanding three-phase electrical installations. Engineered for use with Crabtree Loadstar distribution boards, this TP MCB ensures safe, simultaneous isolation of all three phases, improving system safety and reliability.
Featuring a Type D trip characteristic (10–20 In), this circuit breaker is ideal for applications with high inrush currents such as transformers, motors, and inductive loads. It delivers a dependable 10kA breaking capacity to BS EN 60898-1, with enhanced performance up to 15kA to BS EN 60947-2.
Key Features
- 6A rated current for three-phase circuit protection
- Type D trip curve (10–20 In) for high inrush current applications
- Triple pole MCB for simultaneous isolation of all three phases
- 10kA breaking capacity to BS EN 60898-1 at 240V AC
- 15kA breaking capacity to BS EN 60947-2
- Energy limiting Class 3 to minimise let-through energy
- Compatible with Crabtree Loadstar distribution boards
Standards & Compliance
- BS EN 60898-1
- BS EN 60947-2
Technical Documentation
Data Sheet: Click here to view the data sheet
