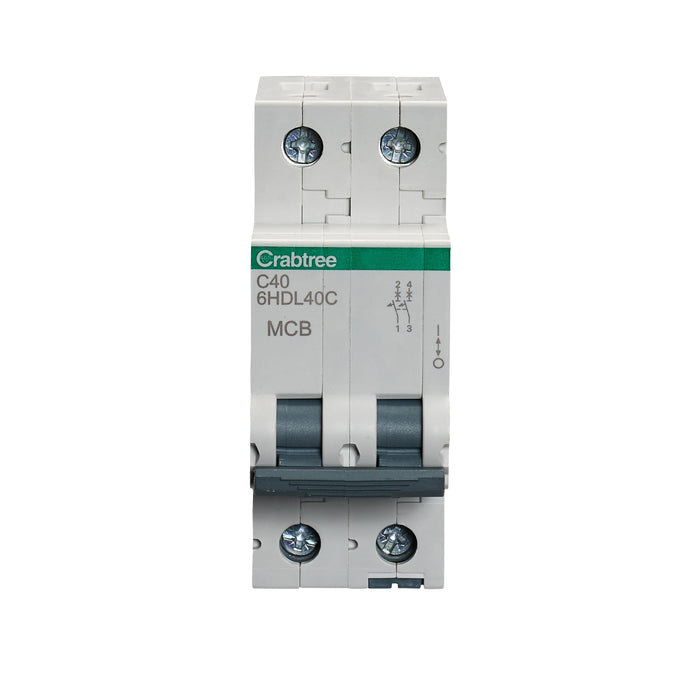

Crabtree 6HDL40C Loadstar 40A Double Pole C Curve 10kA MCB
Crabtree 6HDL40C Loadstar 40A Double Pole Type C 10kA MCB
Product Description
The Crabtree 6HDL40C Loadstar 40A Type C Double Pole Miniature Circuit Breaker provides dependable protection against overloads and short circuits while ensuring full isolation of both live and neutral conductors. Designed for use with Crabtree Loadstar distribution boards, this DP MCB is well suited to commercial and industrial installations where enhanced safety and reliability are essential.
Featuring a Type C trip characteristic (5–10 In), this breaker is ideal for circuits supplying motors, transformers, control gear, and other inductive loads with moderate inrush currents. It delivers a robust 10kA breaking capacity to BS EN 60898-1, with enhanced performance up to 15kA to BS EN 60947-2.
Key Features
- 40A rated current for higher-load circuit protection
- Type C trip curve (5–10 In) for moderate inrush current applications
- Double pole MCB for full live and neutral isolation
- 10kA breaking capacity to BS EN 60898-1 at 240V AC
- 15kA breaking capacity to BS EN 60947-2
- Energy limiting Class 3 to minimise let-through energy
- Compatible with Crabtree Loadstar distribution boards
Standards & Compliance
- BS EN 60898-1
- BS EN 60947-2
Technical Documentation
Data Sheet: Click here to view the data sheet
