Product Description

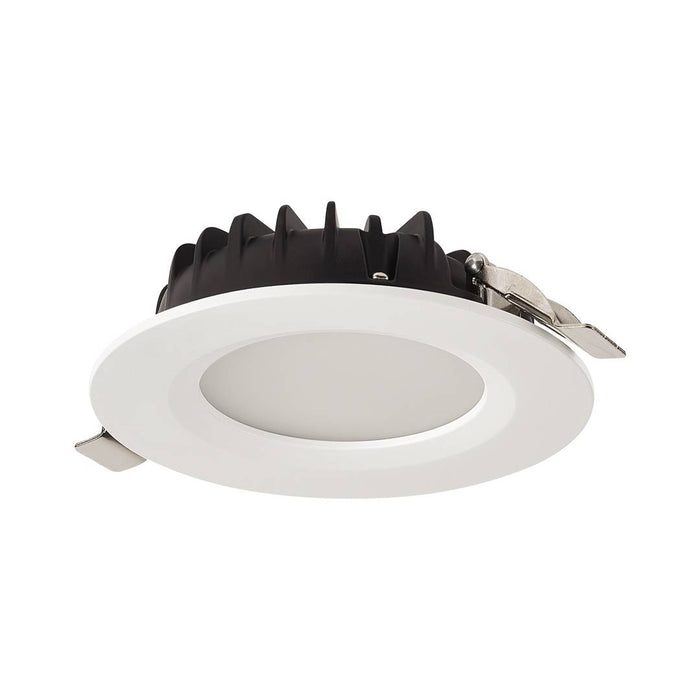

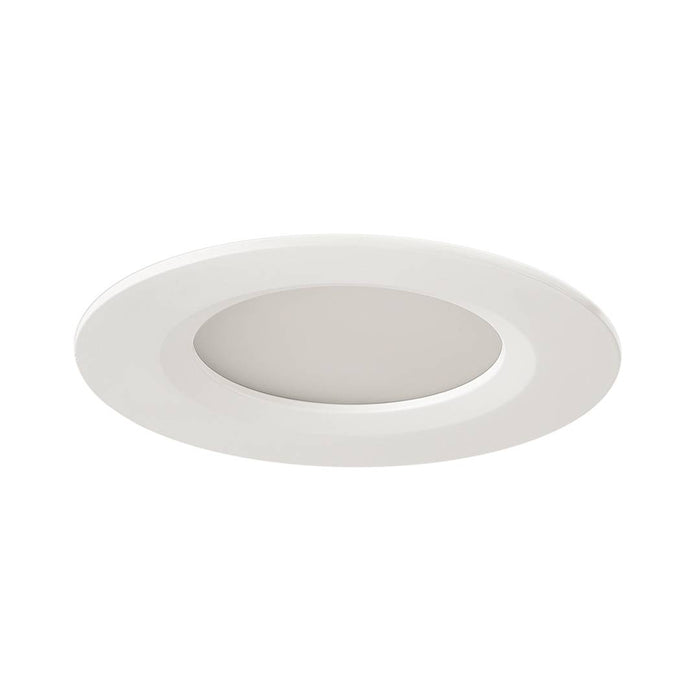

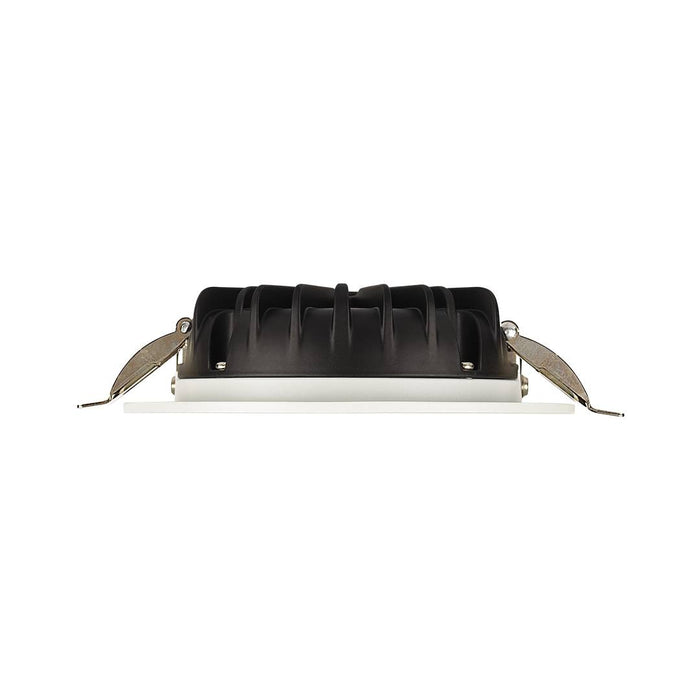

The Collingwood THL1X Thea Lite CSP is a non-dimmable, colour-switchable commercial downlight designed for reliable, everyday lighting in busy environments. Ideal for schools, offices, gymnasiums, hotels and circulation areas, it delivers efficient and consistent illumination with minimal maintenance.

With an IP54 rating from below, this fitting is suitable for internal spaces and sheltered external locations where protection from water splashes is required. High efficacy of up to 120 lm/W helps to reduce energy consumption and running costs, while a plug-and-play connector and loop-in/loop-out terminals make installation fast and straightforward, even in shallow ceiling voids.

Key Features

• Tri-CCT colour switchable: 3000K / 4000K / 6000K
• High efficiency up to 120 lm/W for lower energy bills
• Quick and easy installation with plug-and-play connectors and push-fit terminals
• UGR 27 compliant for comfortable lighting in washrooms, bathrooms, cloakrooms, corridors and stairwells
• IP54 protection from below – resistant to water splashes from any direction
• Low 33 mm product depth, ideal for small or restricted ceiling voids
• TP(a) thermoplastic diffuser and 850 °C glow-wire tested for added safety
• Robust ADC12 aluminium alloy body for long-term durability
• Non-dimmable design for simple, dependable operation

Specification

• Warranty: 5 years
• CRI: >80
• UGR: 27
• IP Rating: IP54 (from below), IP20 (from above)
• Dimmable: No (non-dimmable)
• Input Voltage: 220–240V AC
• Ambient Temperature Range: –20°C to +40°C
• Insulation Coverable: No
• Ceiling Cut-Out: 100 mm
• Body Material: ADC12 aluminium alloy, PC, PET
• Electrical Class: Class II
• Beam Angle: 80°
• Colour / Finish: White
• CCT Range: 3000K / 4000K / 6000K
• Efficiency: 110–120 lm/W
• Emergency Lumens: See accessories
• LED Lifetime: L80 50,000 hours
• Diffuser Rating: TP(a)
• Battery Warranty (where applicable): 3 years
• Connector Type: Push-fit terminal, loop-in / loop-out
• Energy Class: C
• Width: 121 mm
• Length: 121 mm
• Height: 33 mm
• Style: Non-dimmable commercial downlight
• Sensor Option: None
• Emergency Option: None
• Wattage & Lumens: 10W | 1100–1200 lm
• Adjustability: Not adjustable
• Tiltable: Fixed

Data Sheet

Click here to download the Collingwood THL1X data sheet
