Product Description

The Collingwood CDL0218S is a highly versatile commercial downlight featuring both colour temperature and wattage switching, making it suitable for a wide range of applications including offices, hotels, schools, leisure centres and gyms. This adaptable fitting supports multiple cut-out sizes and offers excellent energy efficiency, making it an ideal choice for new installations and retrofit projects alike.

Its slim, modern profile offers a clean aesthetic, while flicker-free operation ensures visual comfort for everyday use. With an IP44 rating, the CDL0218S is also suitable for kitchens, bathrooms and other indoor environments where moisture protection is required.

Key Features

• Tri-CCT selectable: 3000K, 4000K and 6000K
• Wattage switchable between 12W and 18W
• High efficacy up to 120 lm/W for reduced running costs

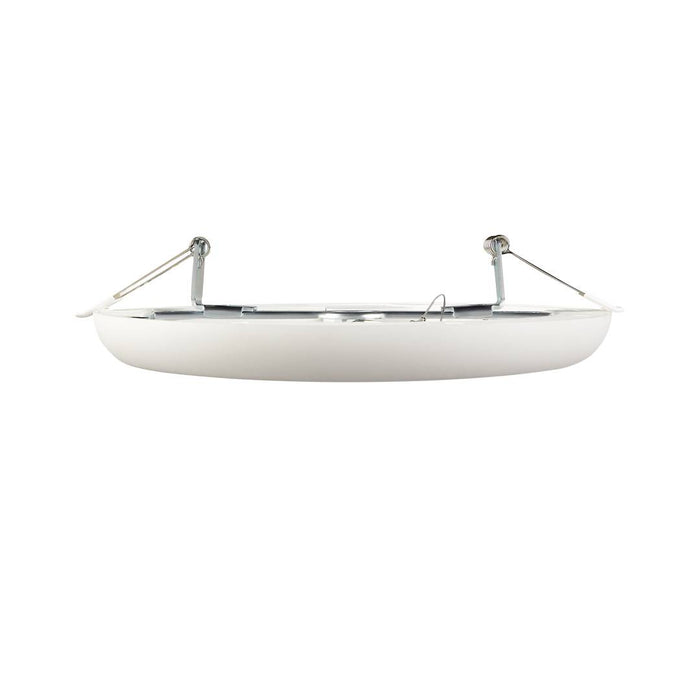

• Adjustable mounting bracket fits cut-outs from 120 mm to 200 mm
• Compatible with surface mounting and BESA boxes
• Flicker-free light output for comfortable visual performance
• Slim, unobtrusive profile for a neat, modern finish
• IP44 rated – suitable for kitchens, bathrooms and other damp areas
• Tool-free twist-and-lock bracket for quick installation

Specification

• Warranty: 3 years
• IP Rating: IP44
• Input Voltage: 220–240V AC
• Ambient Temperature: Up to 40°C
• Electrical Class: Class II
• Colour / Finish: Matt White
• Wattage Range: 12–18W
• CCT Range: 3000K / 4000K / 6000K
• Lumens: 1250–2000 lm
• Efficiency: 92–120 lm/W
• LED Lifetime: L70 50,000 hours
• Connector Type: Flying lead
• Energy Class: E
• Sensor Option: None
• Emergency Option: None
• Tiltable: Fixed

Data Sheet

Download Data Sheet (PDF)

Instruction Manual

Download Instruction Manual (PDF)
