Di-LOG DL6414 1000A AC/DC Digital Clamp Meter with 1000V AC/DC Voltage
Di-LOG DL6414 1000A AC/DC Digital Clamp Meter with 1000V AC/DC Voltage
Product Description

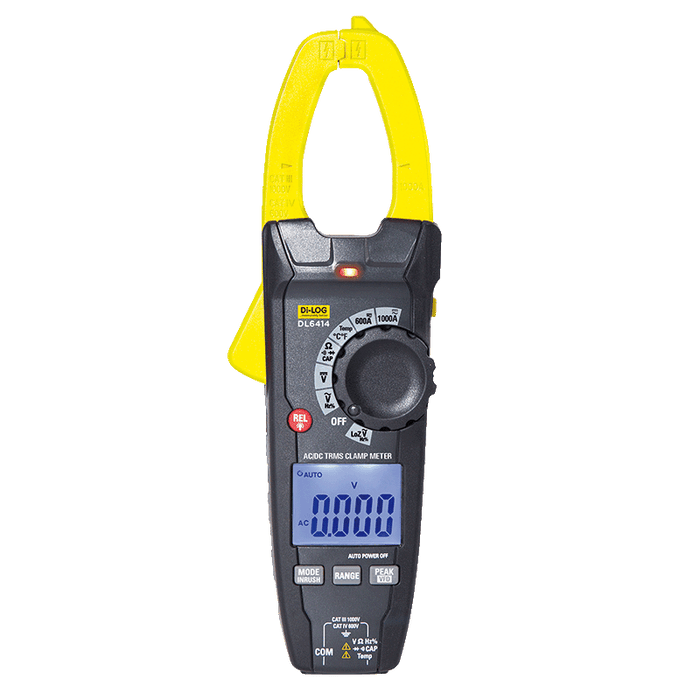

DL6414 TRMS 1000A AC/DC Clamp Meter
The Di-LOG DL6414 is a high-performance True RMS digital clamp meter designed for precise measurements in electrical engineering applications. Its robust construction and advanced features including a 1000V DC measurement, Low Impedance and Inrush Current make it suitable for a wide range of tasks, including domestic and medium commercial solar installations.
- True RMS Measurement: Ensures accurate readings for complex waveforms.
- Accurate AC/DC Current Measurement: Measures up to 1000A with exceptional accuracy, ensuring reliable results.
- Versatile Voltage Measurement: Handles both AC and DC voltages up to 1000V, making it adaptable to various applications including domestic and commercial Solar Installations.
- Compact and Ergonomic Design: The streamlined body and 35mm jaw opening allow for easy handling and access to confined spaces.
- VFD (Variable Frequency Drive) Mode: Optimized for measuring variable frequency drives.
- Inrush Current Measurement: Captures transient currents for troubleshooting.
- Low Impedance (LoZ): Provides accurate measurements in low-impedance circuits.
- Safety and Protection: Rated CAT IV 600V for safe operation and complete protection across all measurement ranges.
- Integrated LED Torch: Improves visibility in low-light conditions.
Why Choose Di-LOG DL6414?
The Di-LOG DL6414 offers a comprehensive set of measurement features with a strong focus on safety and reliability. It’s the perfect tool for professionals who need precise, durable, and easy-to-use instruments in the field.
The DL6414 meets all the safety and performance requirements of EN61010 CAT III 1000V & CAT IV 600V.
Warranty:
The Di-LOG DL6414 is backed by a 24-month manufacturer warranty covering defects in materials and workmanship. Annual recalibration is recommended to maintain measurement accuracy.
Data Sheet:
Click Here for Data SheetInstruction manual:
Click Here for User manual
