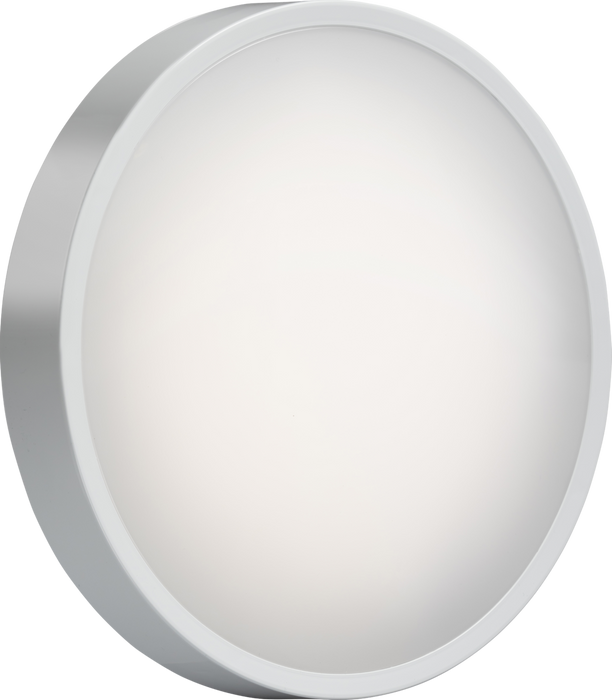

Knightsbridge BTEVPEM BT EVO 230V IP65 IK10 Adjustable Wattage and CCT Emergency LED Bulkhead with a Daylight Sensor
Knightsbridge BTEVPEM BT EVO 230V IP65 IK10 Adjustable Wattage and CCT Emergency LED Bulkhead with Daylight Sensor
The Knightsbridge BTEVPEM BT EVO is a feature-rich emergency LED bulkhead offering adjustable wattage and colour temperature within a durable, slimline housing. Equipped with an integral natural daylight photocell sensor, this unit automatically adjusts operation based on ambient light levels — perfect for enhancing energy efficiency in exterior and security lighting applications. Designed to perform in demanding environments, it combines IP65 weather protection, IK10 impact resistance, and an intelligent LiFePO4 emergency system for long-term reliability.
- Adjustable colour temperature: 3000K / 4000K / 5700K
- Selectable wattage: 9W / 14W / 18W
- Integral daylight sensor for automatic dusk-to-dawn control (exterior use only)
- Slave live terminal allows powering of additional non-sensor luminaires
- Integrated 3-hour emergency function with Lithium (LiFePO4) battery
- IP65 weatherproof and IK10 impact-resistant ratings
- UV-stabilised polycarbonate body and diffuser for outdoor durability
- Push-fit terminals with loop-in / loop-out wiring for fast installation
- Hinged gear tray and twist-lock diffuser for easy maintenance
- Clip-on bezel system for simple customisation
- Class II electrical rating
- 20mm conduit entry points on all four sides plus rear BESA mounting points
- Optional bezels available: Matt Black, Chrome, Eyelid Matt Black, and Eyelid Grey
- Lumen output: 9W – 930lm / 14W – 1400lm / 18W – 1750lm (at 4000K)
The BT EVO range is designed to simplify lighting specification and installation while delivering high performance and durability. This model is particularly well-suited to car parks, pathways, perimeter lighting, and building exteriors where reliability and automatic control are essential.
Data Sheet:
Click Here for Data Sheet
Upgrade to the Knightsbridge BTEVPEM BT EVO — a robust, energy-efficient, and intelligent LED bulkhead offering adaptive daylight control and dependable emergency operation.
