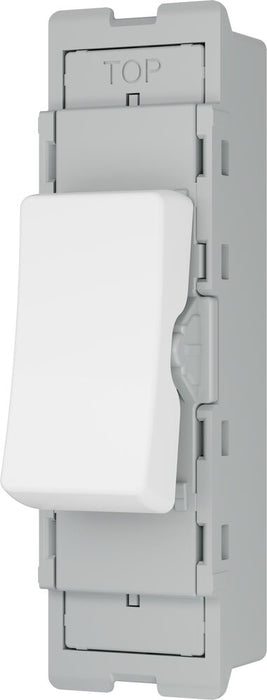

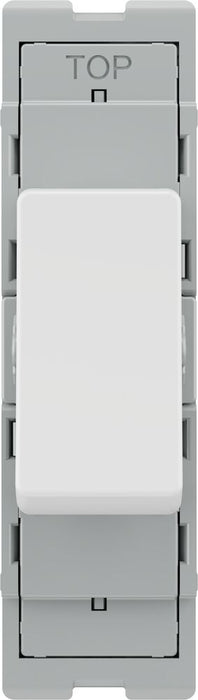

BG GridLite MPCDW12 Evolve 20A 16AX SP 2-Way Switch Module - White

BG GridLite MPCDW12 Evolve 20A 16AX SP 2-Way Switch Module - White

Product Description

The BG GridLite MPCDW12 Evolve 20A 16AX SP 2-Way Switch Module is a versatile clip-in switching solution designed for use with BG GridLite front plates. Finished in white, the module combines a clean, contemporary appearance with a practical modular design suitable for residential and commercial installations.

Rated at 20A 16AX, this single-pole 2-way switch can be used to control a lighting circuit from two locations when correctly paired within a suitable circuit. Its push-fit design allows quick installation without a separate yoke or module screws, while individual modules can be replaced or reconfigured without disturbing adjacent modules.

Features

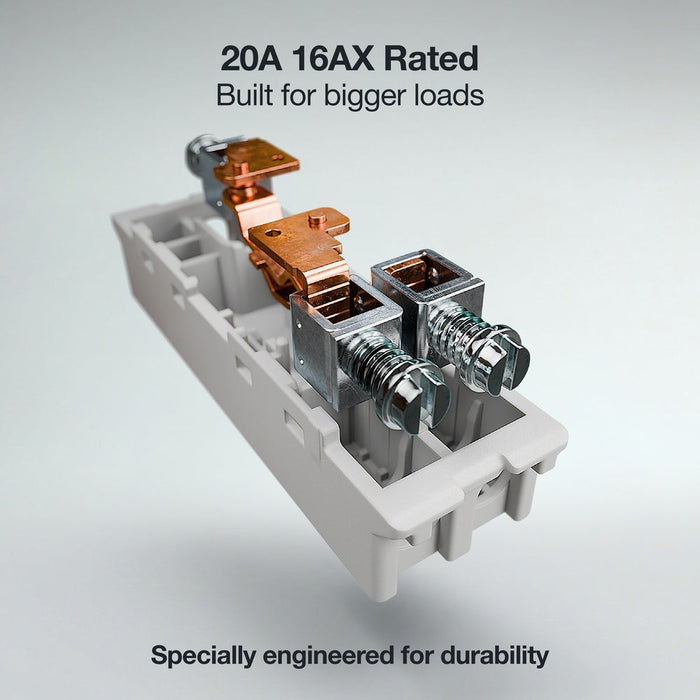

• 20A 16AX single-pole 2-way switch module.
• 2-way switching allows a lighting circuit to be controlled from two locations when correctly configured.
• White rocker finish designed to complement BG GridLite Evolve front plates.
• Push-fit clip-in design for quick and convenient installation.
• No separate yoke or module fixing screws required.
• Individual module can be replaced without removing adjacent modules.

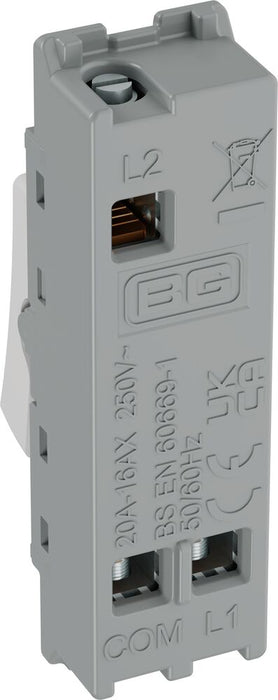

• Clearly labelled terminals help simplify wiring and installation.
• Backed-out retained terminal screws help prevent screw loss during installation.
• Compatible with interchangeable modules across the BG GridLite range.
• Compact modular design allows up to 3 modules to be fitted on a compatible 1-gang GridLite plate.
• Suitable for residential and commercial electrical installations.
• Suitable for standard 16mm back boxes, with 3+ gang configurations requiring a minimum 25mm depth.

Specification

• Product Code: MPCDW12
• Range: BG GridLite Evolve
• Product Type: Switch Module
• Switch Type: Single Pole 2-Way
• Current Rating: 20A
• Lighting Load Rating: 16AX
• Colour: White
• Installation Type: Clip-In Grid Module
