BG CUSPDT21 Single Phase Type 2 Surge Protection Device TT, TNS & TNCS
SKU CUSPDT21
Availability:
IN STOCK
Original price
£26.21
-
Original price
£26.21
Original price
£26.21
Exc VAT
£31.45
Inc VAT
£26.21
-
£26.21
Current price
£31.45
£26.21
-
£26.21
Current price
£31.45

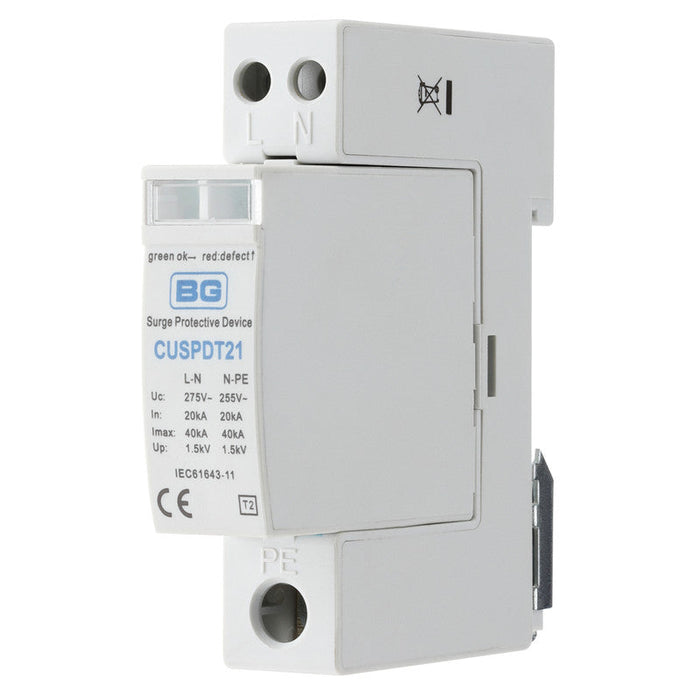

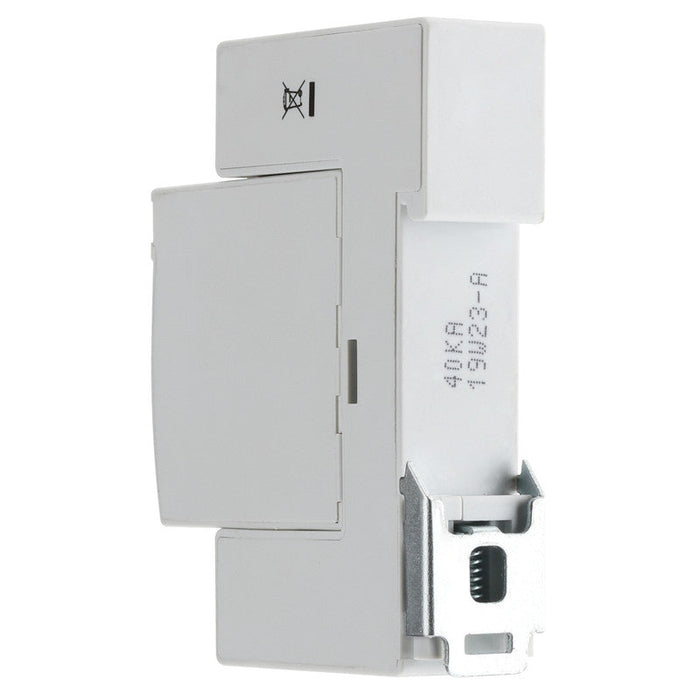

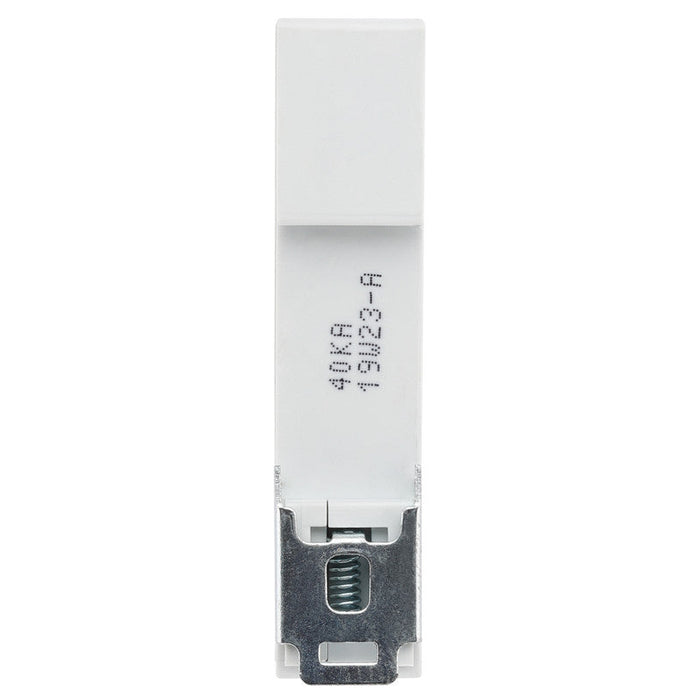

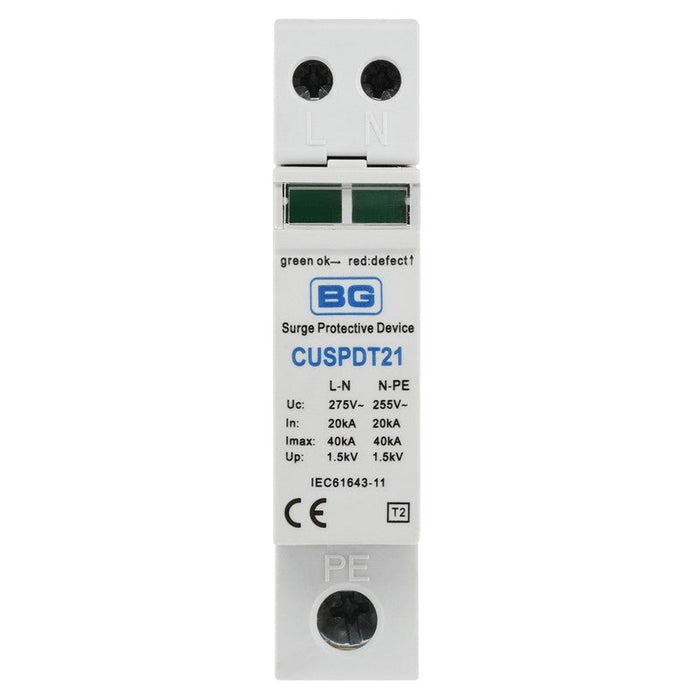

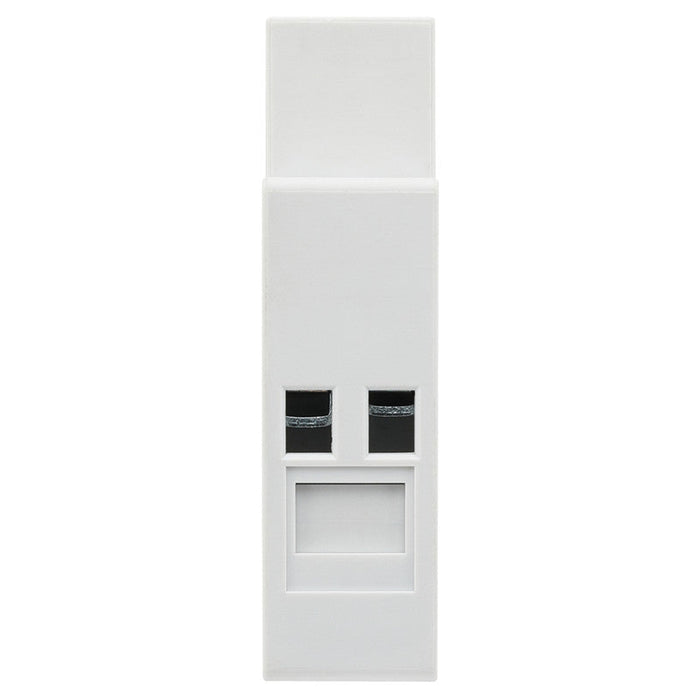

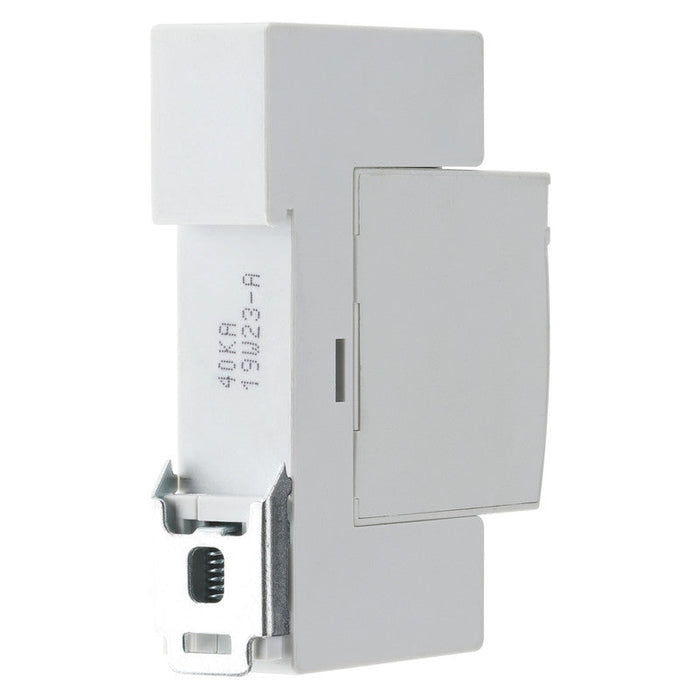

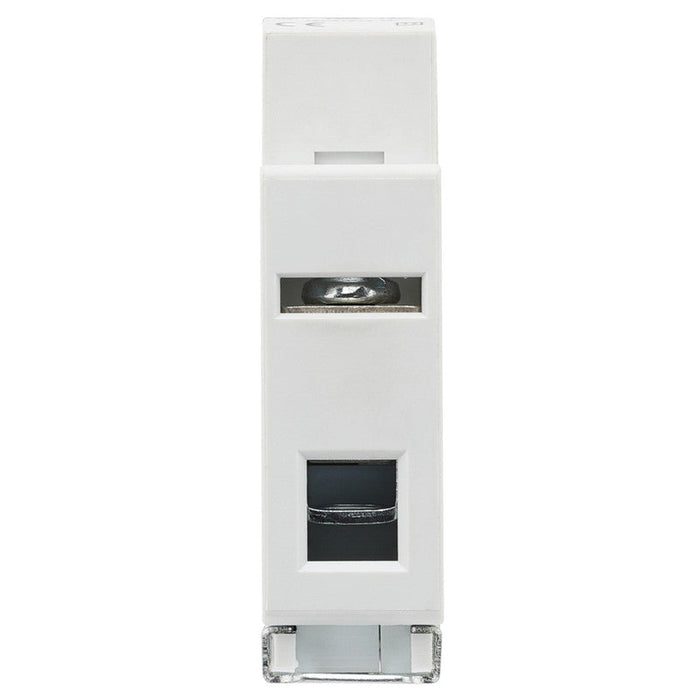

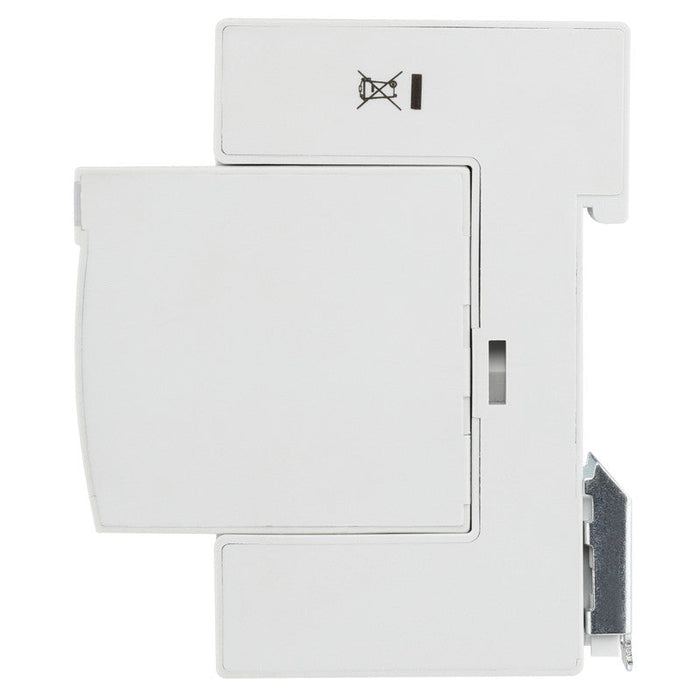

BG Single Phase Type 2 Surge Protection Device TT, TNS & TNCS
- Devices have indicators to advise end of life of the device
- No resetting of SPD required, the excess voltage is quickly taken to earth, before the rest of the circuits are damaged
- The device meets the requirements of the IEC 61634-1 and EN 61643-11 standards
- The SPD enclosure can be fitted next to any exiting or new consumer unit of any brand where surge protection is required
This Type 2 Surge Protection Device provides superior protection against Transient overvoltages, by diverting the surge to earth within <25ns. And protecting all loads/circuits connected to the consumer unit.
This item is Type2, 2 Module, TT, TN and TNCS
Features
- Type 2 Single Phase Surge Arrester
- Fully compliant to BSEN61643-11 , BSEN62305 & BS7671
- Suitable for domestic installations
- Min. back up MCB 16-32A B or C curve
- Can be fitted on DIN rail directly into the consumer unit
- Grey colour to match existing circuit protection devices
- IP20 protection degree
- Response time < 25ms
Data Sheet:
Click Here for Data SheetSurge Protection 18th Edition IET Wiring Regulations
Click Here for Surge Protection 18th Edition IET Wiring Regulations SheetCircuit Protection Range Leaflet:
Click Here for Circuit Protection Range Leaflet
