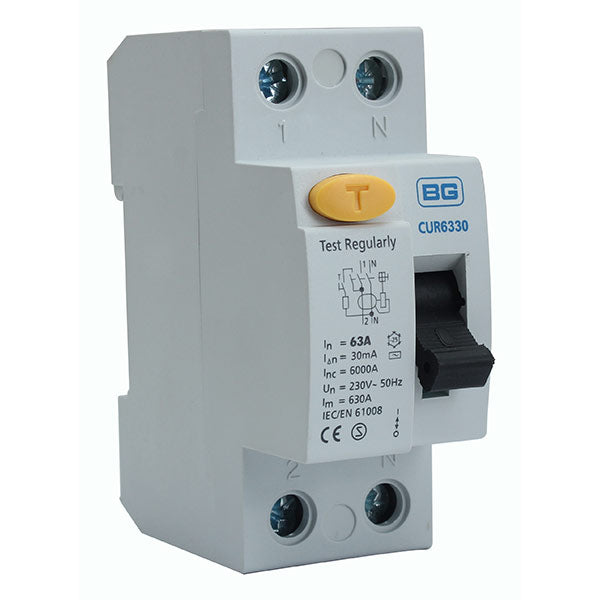

BG CUR6330A 63A Double Pole 2 Module 30mA Type A RCD

BG 63A Double Pole 2 Module 30mA Type A RCD

Features of the Consumer Units range

• Lockable cover option available
• Easy access of cables via knockouts, in sides top and bottom, plus additional rear entry knockouts
• Spirit level, to enable quick installation
• Backed-out and retained terminal screws, prevents loss of screws, and saves on installation time

Circuit Protection – Type A RCDs
The two module, double pole RCDs provide earth fault current protection for residential and light commercial applications.
Available in 40, 63, 80 & 100A with 30mA sensitivity
These devices are an A type device offering Earth leakage protection on installations with an AC alternating current and equipment which produces a pulsed DC output current
All RCDs have a positive contact status indicator, i.e. when green window is visible this indicates that there is a 4mm contact gap

This item is 63A 30mA Double Pole, Type A

Features

• Positive contact status indication
• Device capable of being locked in ‘ON’ or ‘OFF’ position using a device lock
• Type A
• 63A, 30mA

Data Sheet:

Click Here for Data Sheet

Circuit Protection Range Leaflet:

Click Here for Circuit Protection Range Leaflet
