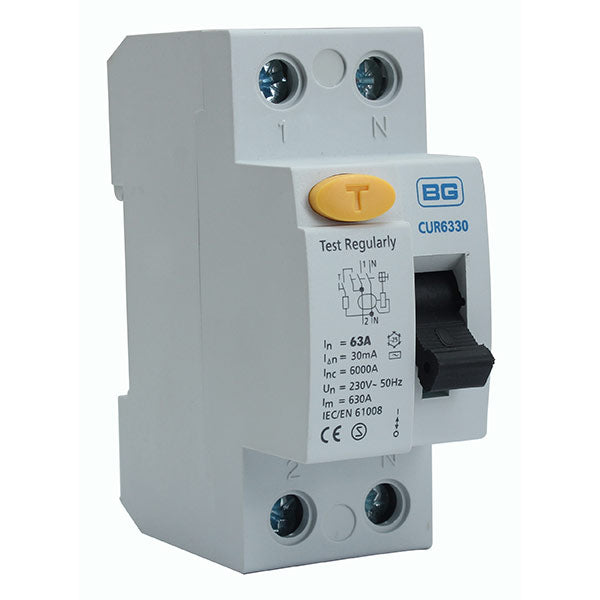

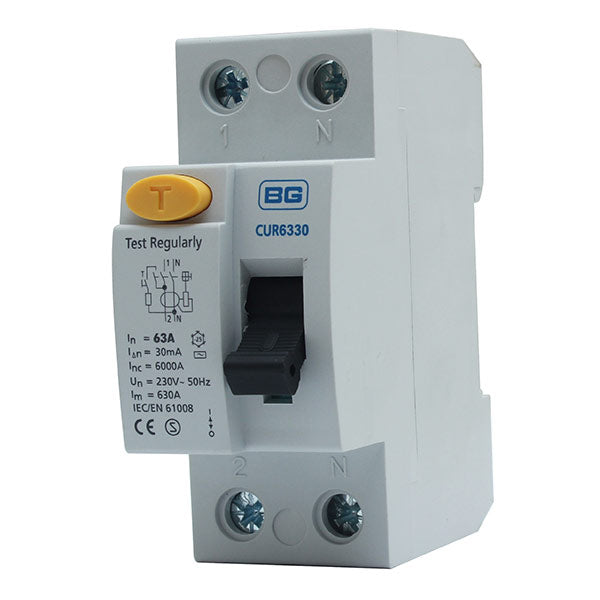

BG CUR6330 63A Double Pole 2 Module 30mA Type AC RCD

BG 63A Double Pole 2 Module 30mA Type AC RCD

Features of the Consumer Units range

• Lockable cover option available
• Easy access of cables via knockouts, in sides top and bottom, plus additional rear entry knockouts
• Spirit level, to enable quick installation
• Backed-out and retained terminal screws, prevents loss of screws, and saves on installation time

Circuit Protection – RCDs
The two module, double pole RCDs provide earth fault current protection for residential and light commercial applications.
Available with a choice of 40, 63 or 80A rating, and choice of 30 or 100mA sensitivity
All BG RCDs are the common Type AC, suitable for situations where there are residual sinusoidal alternating currents.
The Time Delayed RCD is used typically when two RCDs are installed in series, and the time delayed RCD enables discrimination, i.e. in the event of a fault only the ‘upstream’ RCD should trip.
All RCDs have a positive contact status indicator, i.e. when green window is visible this indicates that there is a 4mm contact gap

This item 63A 30mA Double Pole, Type AC

Features

• Positive contact status indication
• Device capable of being locked in ‘ON’ or ‘OFF’ position using a device lock
• Type AC
• 63A, 30mA
