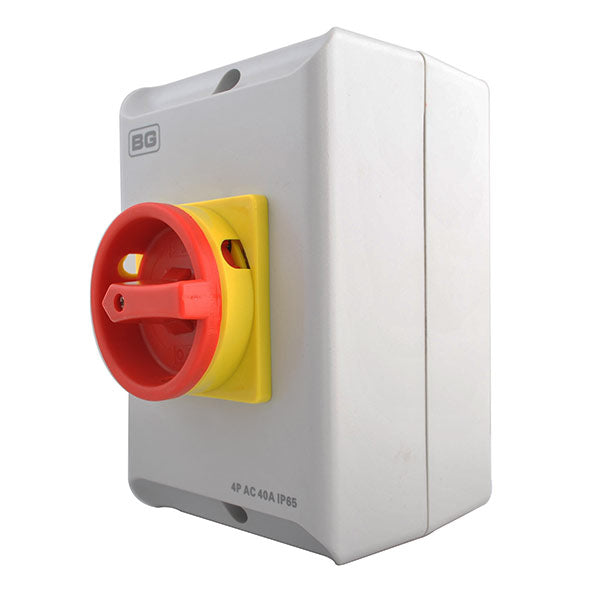

BG CPRSD440 40A 4 Pole AC IP65 Rotary Isolator

BG 40A 4 Pole AC IP65 Rotary Isolator

Features of the Rotary Isolators range

• Red/Yellow handle lockable with padlock
• Captive retained cover screws
• Switch interlocked with lid to prevent opening in ON position

Rotary Isolator - Rotary Switch Disconnector
Rotary isolators or Rotary switch disconnectors are used to switch power to commercial/light industrial applications. The red switch can be used as an emergency stop, and can be locked in the OFF position using the yellow surrounding ring and padlock.

This item is 40A Rotary Isolator 4P a.c. IP65

Features

• Insulated 4 pole, suitable for a.c
• Weatherproof to IP65
• Easy cable access via M20/25 knockouts (top and bottom)
• Red / Yellow padlockable handle
• Switch interlocked with lid to prevent opening in ON position
• Earth terminals included
• Captive retained cover screws
• Manufactured and tested to BS EN 60947-3
