BG CFUGAR2 Garage Kit - IP20 Metal Enclosure, 100A Main Switch, 6+16A MCB

BG Garage Kit - IP20 Metal Enclosure, 100A Main Switch, 6+16A MCB

IP20 Metal Enclosures
Enclosures are typically used as an extension to an existing consumer unit but can also be used in isolation. Typical applications include house and loft extensions, garages, sheds, workshops or for showers.
This range of all metal enclosures are manufactured from steel and are compliant with the 17th Edition Wiring Regulations, Amendment 3. Enclosure kits are supplied complete with devices, DIN rail, neutral cable, neutral and earth terminals and a busbar.
Cover blanks are supplied to allow the installation of single pole RCBOs or single pole SPDs.
M20 knockouts can be drilled to M32 if required with a range of cable glands and grommet kits also available to maintain IP ratings and Amendment 3 compliance.

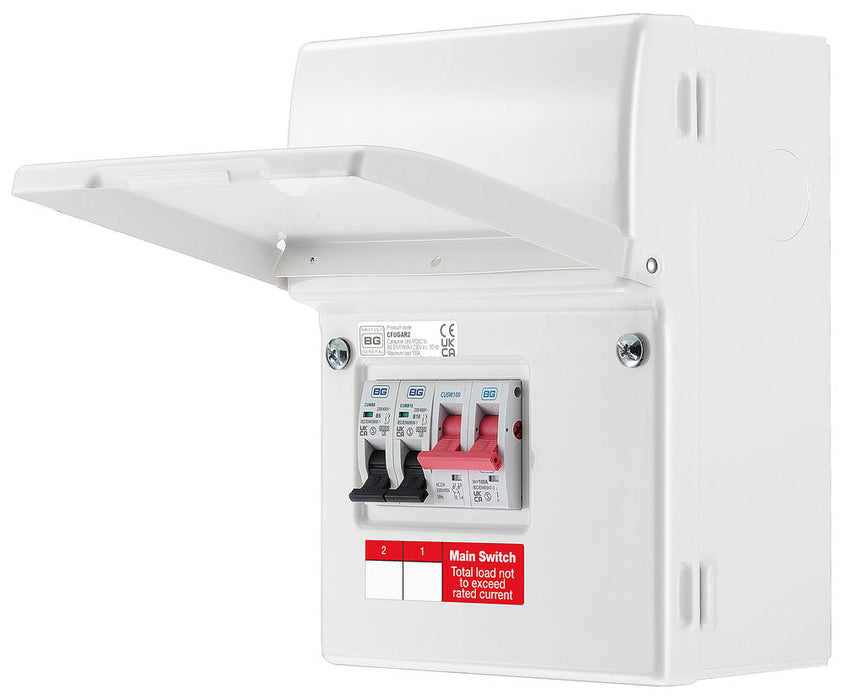

This item is Garage Kit - IP20, 100A Main Switch, 6A + 16A MCB

Features

• IP20 enclosures suitable for use in indoor, dry locations
• Enclosures supplied with DIN rail and neutral and earth terminals
• Manufactured and tested to BS EN 61439

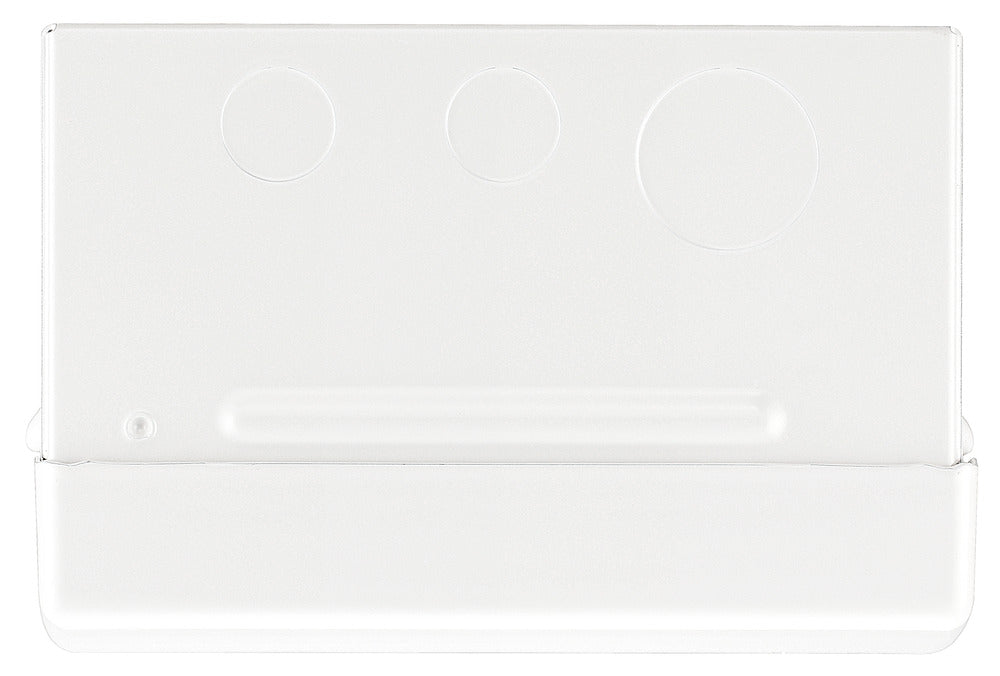

• Ø20mm knockouts on all sides drillable to Ø32mm
• Enclosure kits supplied complete with devices, DIN rail, neutral cable, neutral and earth terminals, cover blanks,IP65 and busbar

Circuit Protection Range Leaflet:

Click Here for Circuit Protection Range Leaflet
