BG CFUD1000016A BG 22 Module 16 Way Unpopulated + 100A Switch, 2x100A Type A 30mA RCD
SKU CFUD1000016A
Availability:
SOLD OUT
Sold out
Original price
£109.62
-
Original price
£109.62
Original price
£91.35
Exc VAT
£109.62
Inc VAT
£109.62
-
£109.62
Current price
£109.62
£109.62
-
£109.62
Current price
£109.62
BG 22 Module 16 Way Unpopulated + 100A Switch, 2x100A Type A 30mA RCD
- Lockable cover option available

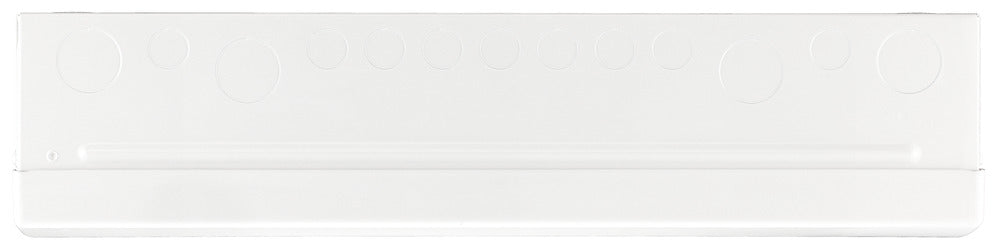

- Easy access of cables via knockouts, in sides top and bottom, plus additional rear entry knockouts
- Spirit level, to enable quick installation
- Backed-out and retained terminal screws, prevents loss of screws, and saves on installation time

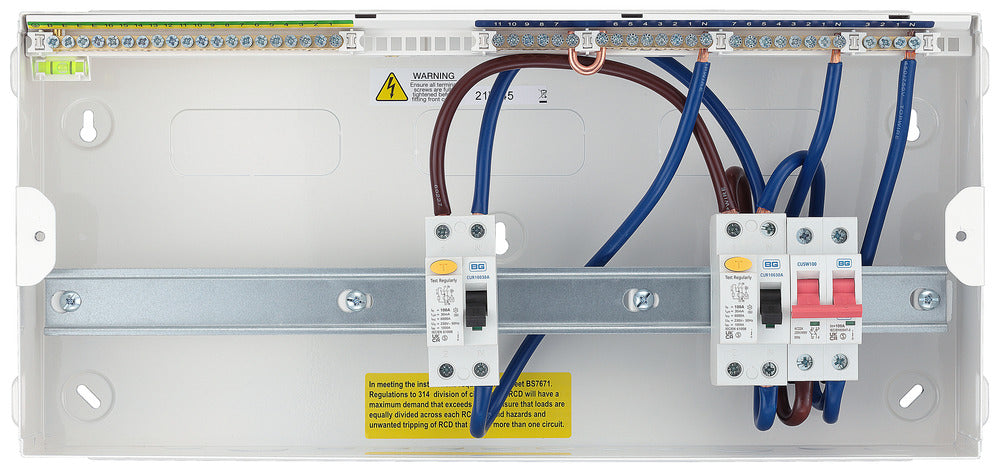

Allows the installer to split the consumers power needs across two 30mA RCD’s, for example lighting and sockets circuits.

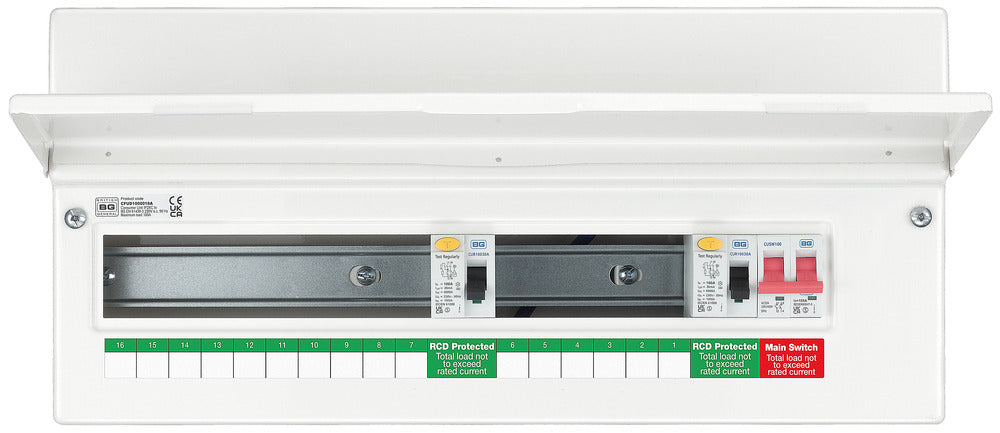

This item is 16 WAY with 100A Switch, 2 x 100A 30mA Type A RCD
Features
- Dual RCD Consumer Unit
- Unpopulated
- All metal unit, manufactured from stainless steel
- Metal units supplied with Ø20mm and Ø32mm knockouts
- Dual RCD units supplied with optional High Integrity as standard
- Each consumer unit supplied with spare cover blanks
- Terminal and busbar design provide maximum flexibility for combination of protected or unprotected circuits
- Lockable covers also available
- Integrated spirit level

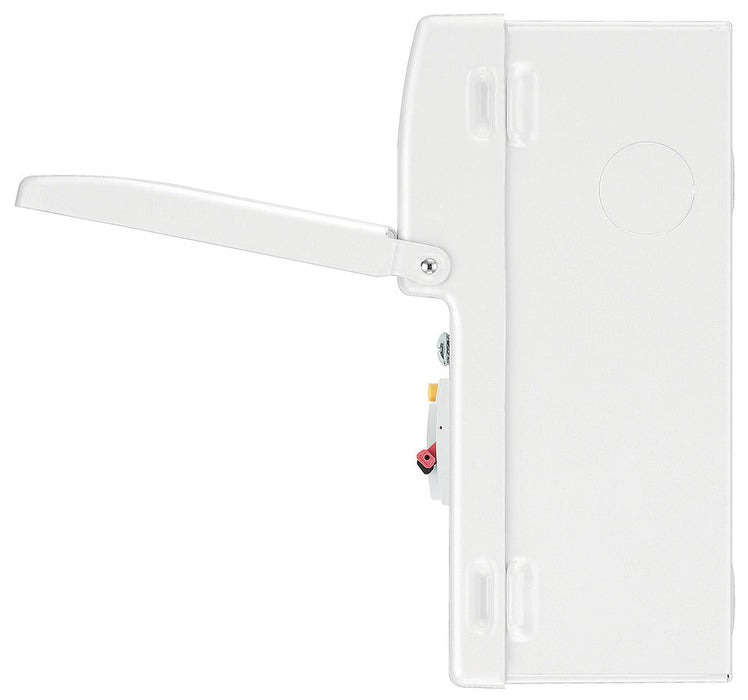

- Bottom hinged visor
- White gloss finish
Circuit Protection Range Leaflet:
Click Here for Circuit Protection Range Leaflet
