BG Fortress CFFD1000014ASPD 14 Way Metal Unpopulated Fully Recessed Consumer Unit with 100A Main Switch, 2x 100A 30mA Type A RCD & 1x SPD

BG Fortress CFFD1000014ASPD 14 Way Metal Unpopulated Fully Recessed Consumer Unit with 100A Main Switch, 2x 100A 30mA Type A RCD & 1x SPD

DISCOVER THE NEW STRENGTH
The Fortress circuit protection range from BG is about to launch its most extensive upgrade yet, with the latest improvements dovetailing the new guidelines around the 18th Edition Wiring Regulations, Amendment 2.
These improvements have been made with the help of trusted installers working with our product development experts to help meet these regulation changes, with the aim of helping the installer complete their installations as quickly and efficiently as possible.
Strengthened lid and base for easier installation
New lid and base
The new lid has been redesigned to add strength and rigidity whilst ensuring an accurate and secure fit with the base. The base itself has also been beefed up, additional strengthening ribs on the top and bottom faces, to ensure the base is rock solid when being secured.
Redesigned aperture and lid retainer

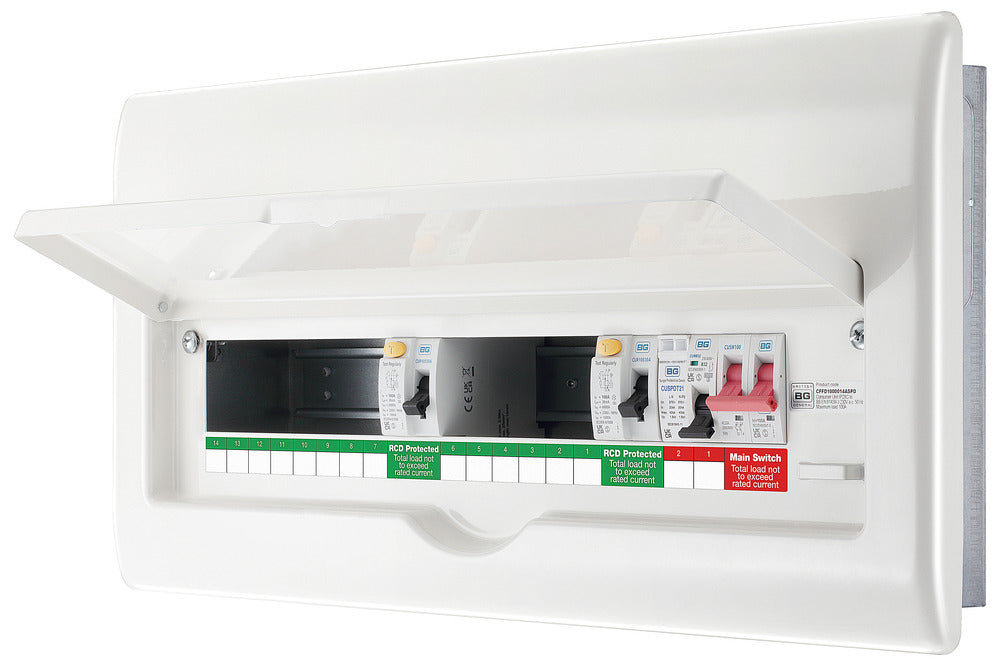

A step-down aperture has been added to improve the fit around the devices and blanks when fitting the cover. What's more, a new and convenient lid retainer allows the lid to be held open. This simple solution is a significant change when finishing an install, or checking the board, leaving both hands free to access the devices.
Redesigned knockouts for easier installation
Optimised positioning
Based on feedback, knockout positions have been realigned on the top and bottom of the base. Why is this better? This change enables the incoming wires to be in line with the offset incomer, making installation easier and termination of the cables more straightforward. This helps to minimise stress on the cable, termination DIN rail, and devices.
Reduced contact points

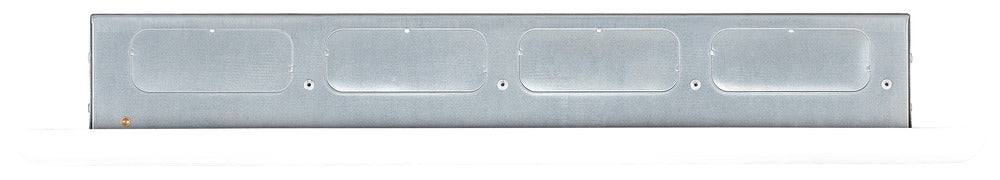

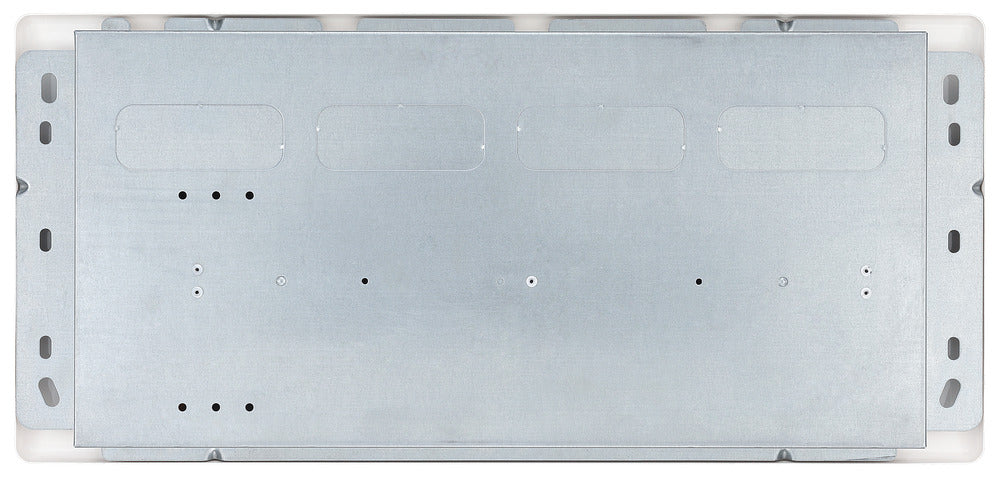

Making removal easier and protecting the board against damage during this process. For our recessed variants, we have added additional knockouts to the top and the rear, for easier cable entry/exit.

Recessed Consumer Units

A method of installation which allows the installer to carry out a first fix to a property, without the worry of other trades painting or plastering the outer front cover. This range also offers a smaller profile for narrow passages and where height requirements are specified. Available in Main Switch/RCD, Dual RCD, in Populated and Unpopulated versions.

Recessed Dual RCD Consumer Units – Type A

Recessed Dual RCD Consumer Units – Unpopulated, 100A Type A + SPD

Features

• Fully recessed for low intrusion
• 68mm depth into wall cavity
• Dual RCD units supplied with optional high integrity as standard
• Each consumer unit supplied with spare cover blanks
• Supplied with lockable cover as standard
• Optional barrel lock supplied separately

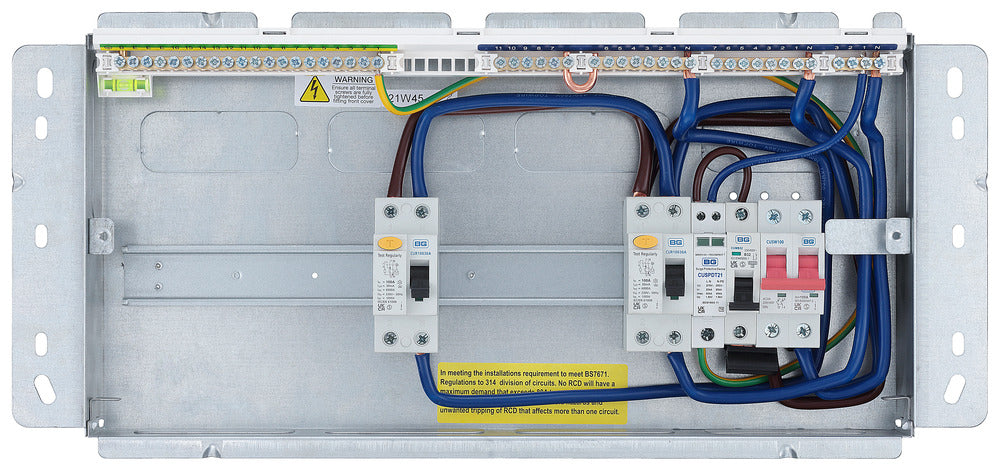

• Terminals and Busbar design provide maximum flexibility for combination of protected or unprotected circuits

Fortress Circuit Protection Range Leaflet:

Click Here for Circuit Protection Range Leaflet
