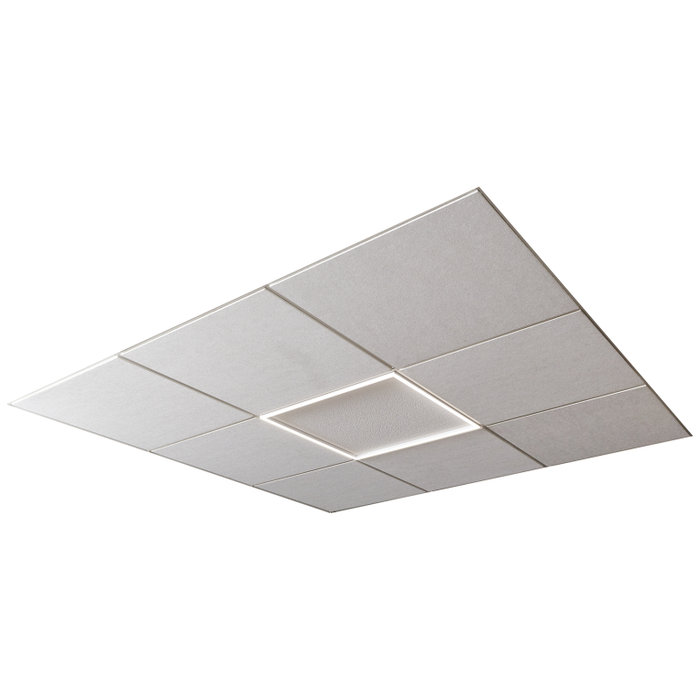

Ansell ASPELED/60/CCT/DD1/SM3 Spektrum LED CCT Frame DD1 Switch Dim EM Self-Test

SKU ASPELED/60/CCT/DD1/SM3
Availability:
Dispatch in 7-10 Days
£243.40
£243.40 - £243.40
£243.40
£176.43 Exc VAT
£211.72 Inc VAT
£211.72 - £211.72
£211.72
£211.72 - £211.72
£211.72
Request a quote
Read More...

Ansell ASPELED/60/CCT/DD1/SM3 Spektrum LED CCT Frame DD1 Switch Dim EM Self-Test

Internal3Emergency Self TestRecessed
  • Minimalist LED panel frame for commercial and architectural applications
  • Hollow illuminated frame allows installation of standard ceiling panel to sit inside frame and level with grid
  • Integral switch allows the installer a choice of 3000K, 4000K and 6500K colour temperature options
  • More decorative option for general illumination
  • Retains all fire integrity of the ceiling

Dimensions

Length:595 mm
Width:595 mm
Depth:14 mm
Cut-Out Size:585x585mm

LED Information

Total (Watts):27W
Lumens Delivered:3000lm (4000K)
Lm/W:112lm/W (4000K)
CRI:80
CCT:3000/4000/6500K
Input:220-240V
Operating Temp:0°C - 45°C

Polar Curve

Data Sheet:

Click Here for Data Sheet
