Ansell APRIPAG/1 Prism Pro AG Downlight CCT Dual Wattage

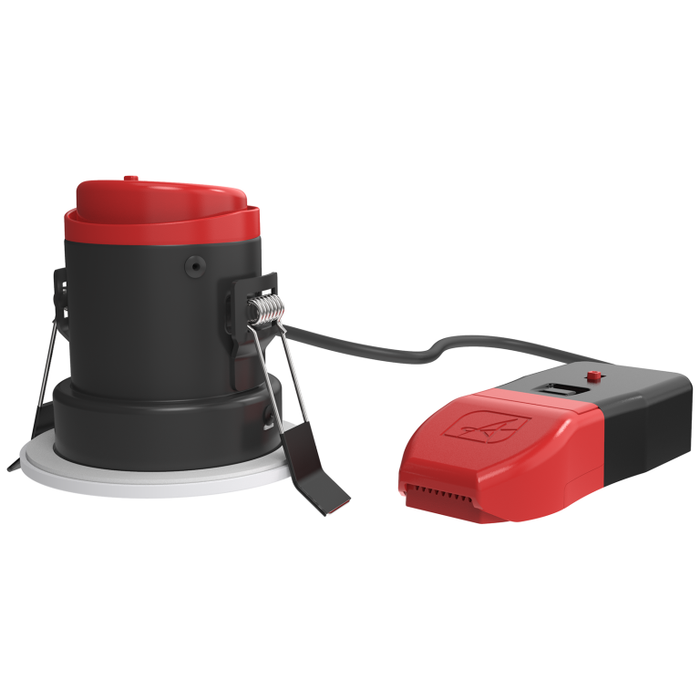

Ansell APRIPAG/1 Prism Pro Anti Glare 5W-7W IP65 LED Dimmable Fire Rated Downlight 4xCCT Dual Wattage

Product Description

• Fully tested to meet Part C (moisture), Part E (acoustic) and Part L (energy) of Building Regulations
• 220-240V IP65 LED dimmable CCT fire rated architectural downlight suitable for residential and hospitality applications
• CCT selectable between 2700K, 3000K, 4000K and 6000K and power selectable; offering a choice of 2 outputs, in one luminaire
• Supplied with matt white bezel as standard. Chrome, satin chrome and matt black bezels sold separately
• Anti-glare design to create visual comfort
• New innovative 2 part detachable connector design allows initial wiring and testing to be completed first, then simply plug the downlight back to the connector, ensuring a quick and simple installation
• Remote driver with 2x1.5mm? + CPC loop-in, loop-out colour coded push fit piano terminals provide an easy and efficient installation
• Low profile design and remote driver allow installation into shallow ceiling voids

Dimensions

• Height: 85mm
• Diameter: 88mm
• Cut-Out Size: 75mm

LED Information

• Total (Watts): 5W - 7W
• Lumens Delivered: 450lm - 580lm (4000K)
• CRI: 80
• CCT: 2700/3000/4000/6000K
• Input: 220-240V
• Operating Temp: -20^oC to 35^oC

Data Sheet:

Instruction Manual:
