Ansell AAZT1/SYM/1 Aztec 1 Symmetric Floodlight 20W/40W IP66 CCT 3000K/4000K/5000K Black
Ansell AAZT1/SYM/1 Aztec 1 Symmetric LED Floodlight 20W/40W IP66 CCT 3000K/4000K/5000K Black
Product Overview

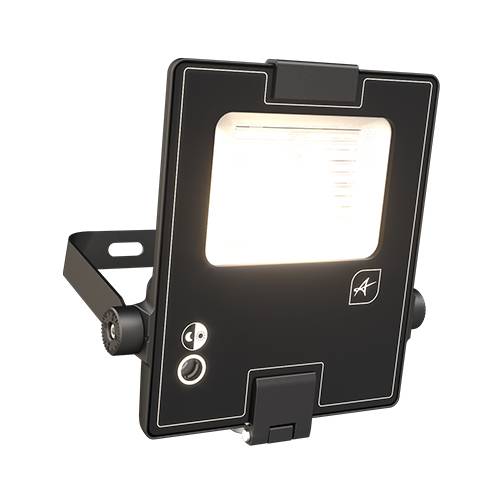

The Ansell AAZT1/SYM/1 Aztec 1 Symmetric LED Floodlight is a premium-grade, high-efficiency luminaire engineered for exceptional outdoor performance. Constructed from durable die-cast aluminium with a marine-grade finish, it provides long-lasting protection against harsh environments — making it ideal for industrial, commercial, and coastal installations. This powerful floodlight offers CCT switchable output between 3000K, 4000K, and 5000K, allowing flexible lighting solutions to suit a variety of applications.
Delivering up to 180lm/W efficacy, the Aztec 1 ensures outstanding energy efficiency and reduced operating costs. Designed with ease of installation in mind, it features fast-fit lever terminals, a 1.5m pre-wired rubber cable, and a unique bracket design that allows mounting without bracket removal. The integrated breathable gland prevents internal moisture build-up, ensuring reliable long-term performance.
Key Features
- Selectable Colour Temperature: Choose from 3000K, 4000K, or 5000K to suit your environment.
- High efficiency: Delivers up to 180 lumens per watt for maximum performance and energy savings.
- Robust construction: Die-cast aluminium body with marine-grade finish for superior corrosion resistance.
- Ingress protection: IP66 rating ensures complete protection against dust and powerful water jets.
- Pre-installed breathable gland: Prevents internal moisture accumulation for enhanced reliability.
- Bracket design: Allows installation without the need to remove the mounting bracket.
- Pre-wired connection: Supplied with 1.5m of rubber-insulated cable for fast, hassle-free setup.
- Fast-fit lever terminals: Enable quick and secure loop-in, loop-out installation.
- Integral photocell: Two lux settings with automatic on/off operation for improved energy control.
- Surge protection: 10kV on 120W–320W models, 6kV on 20W–80W variants.
- Non-dimmable: Designed for stable performance in all applications.
Applications
- Industrial and commercial exteriors
- Coastal and marine environments
- Swimming pool areas and leisure facilities
- Chemical plants and manufacturing sites
- General outdoor illumination and security lighting
